10ft*7ft DPCC Compliant LED Display

DPCC(Delhi Pollution Control Board) compliant LED display to showcase air quality at construction sites in Delhi greater than 20,000 sqm.


Airveda PM2.5, PM10, and Temperature, Humidity, Wind Speed, Wind Direction, Light and Noise Monitor
airveda-led-display
airveda-led-display
airveda-led-display

Standard 10*7 Display

Parameters PM2.5, PM10, Date, Time
Size 10feet * 7 feet
Character Height 90mm
Mounting Options Wall/pole mounted.
Color RGB
Connectivity Options GSM (Wireless)
AC Power consumption 2KW
Site details
  • Site Address
  • Proponent Name
  • Build Up Area
  • Latitude & Longitude

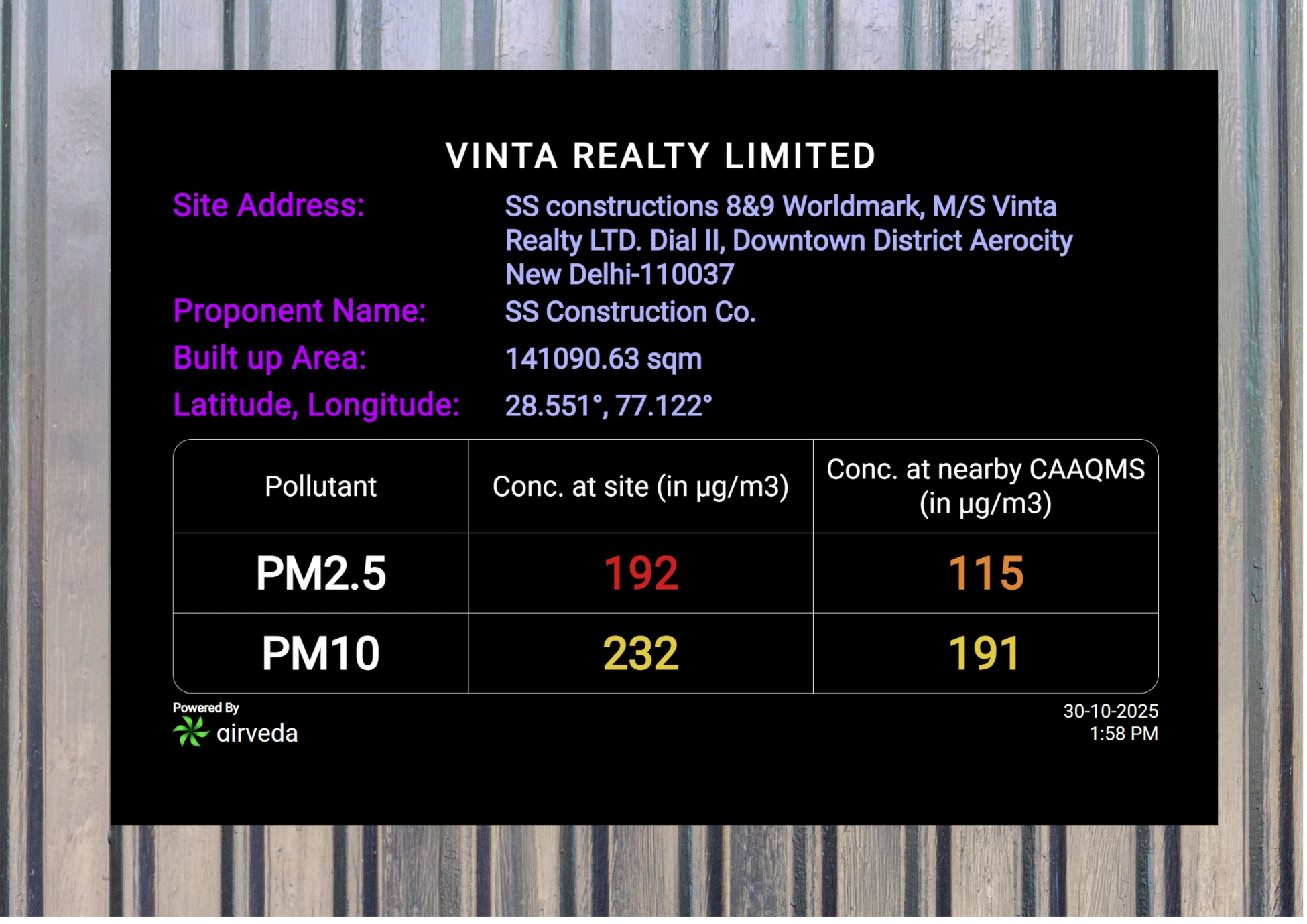

Display Details
  • P10 LED Display
  • Color of the parameters changes according to the Severity
  • Organization name on the top
  • Site address
  • Proponent name
  • Build up area
  • GPS coordinates (Lat/ long)
  • 11 Points of Dust mitigation compliances at site

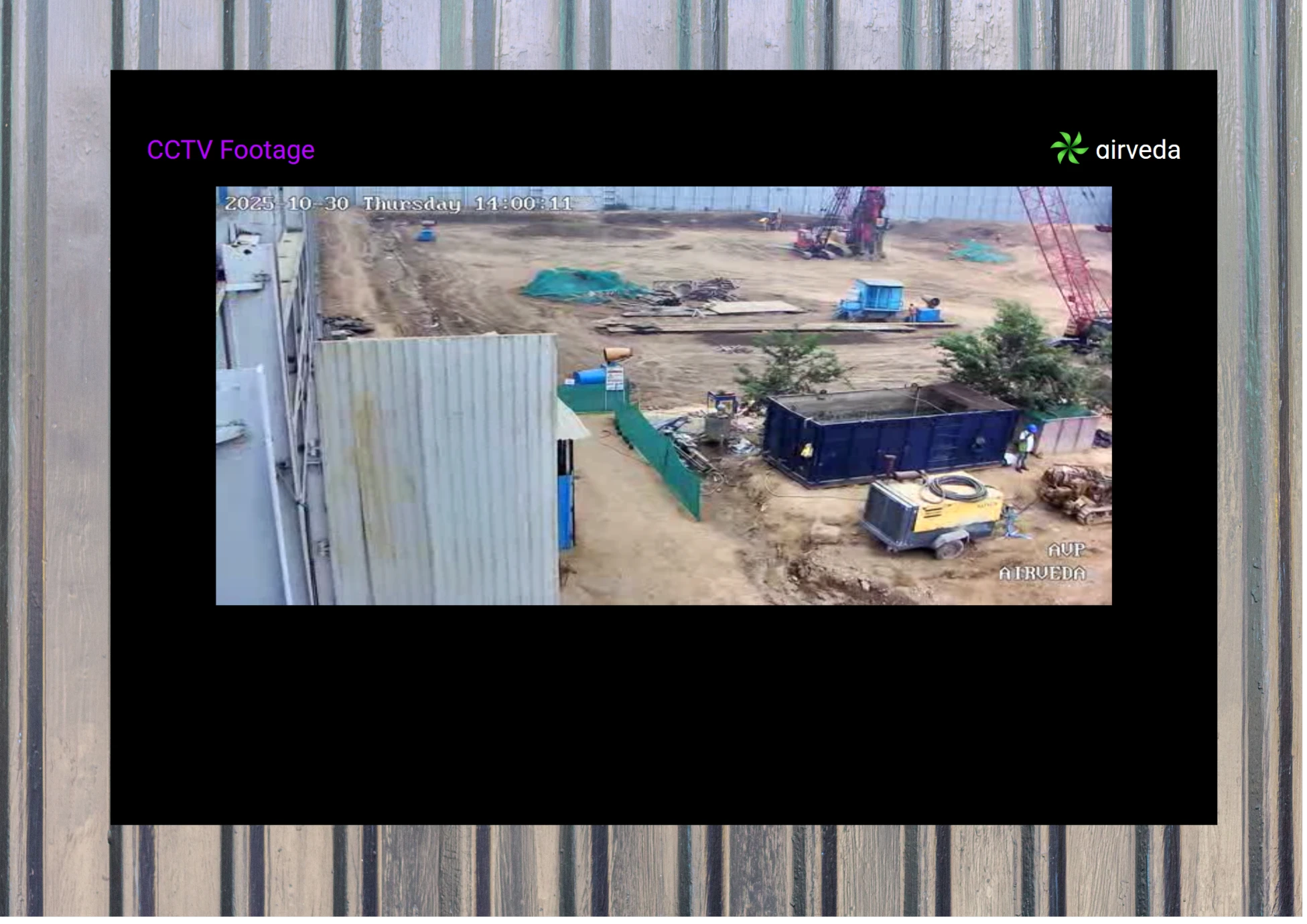

  • CCTV video streaming

Model Number: P10-RGB-GSM-10x7
