Airveda G1

Meet IGBC compliant and app enabled gases monitor, designed to measure NO₂, O₃, SO₂, CO, and HCHO in real-time.


Airveda PM2.5, PM10, and Temperature, Humidity, Wind Speed, Wind Direction, Light and Noise Monitor
Airveda PM2.5, PM10, and Temperature, Humidity, Wind Speed, Wind Direction, Light and Noise Monitor
airveda-eye
airveda-eye
airveda-eye
Accurate

Airveda G1 with NO₂, O₃, SO₂, CO, and HCHO Touch Monitor uses High-quality electrochemical sensors, calibrated for Indian conditions against a BAM (Beta Attenuation Monitor- the most advanced system for measuring ambient air quality) for accurate measurement. It uses high quality commercial grade sensors.


Portable And Real-Time

The small size and long battery life of 10-14 hours make the monitor extremely portable. Can be charged using any USB power outlet in your car, laptop, or power bank. Air quality is measured every second to provide real-time data.

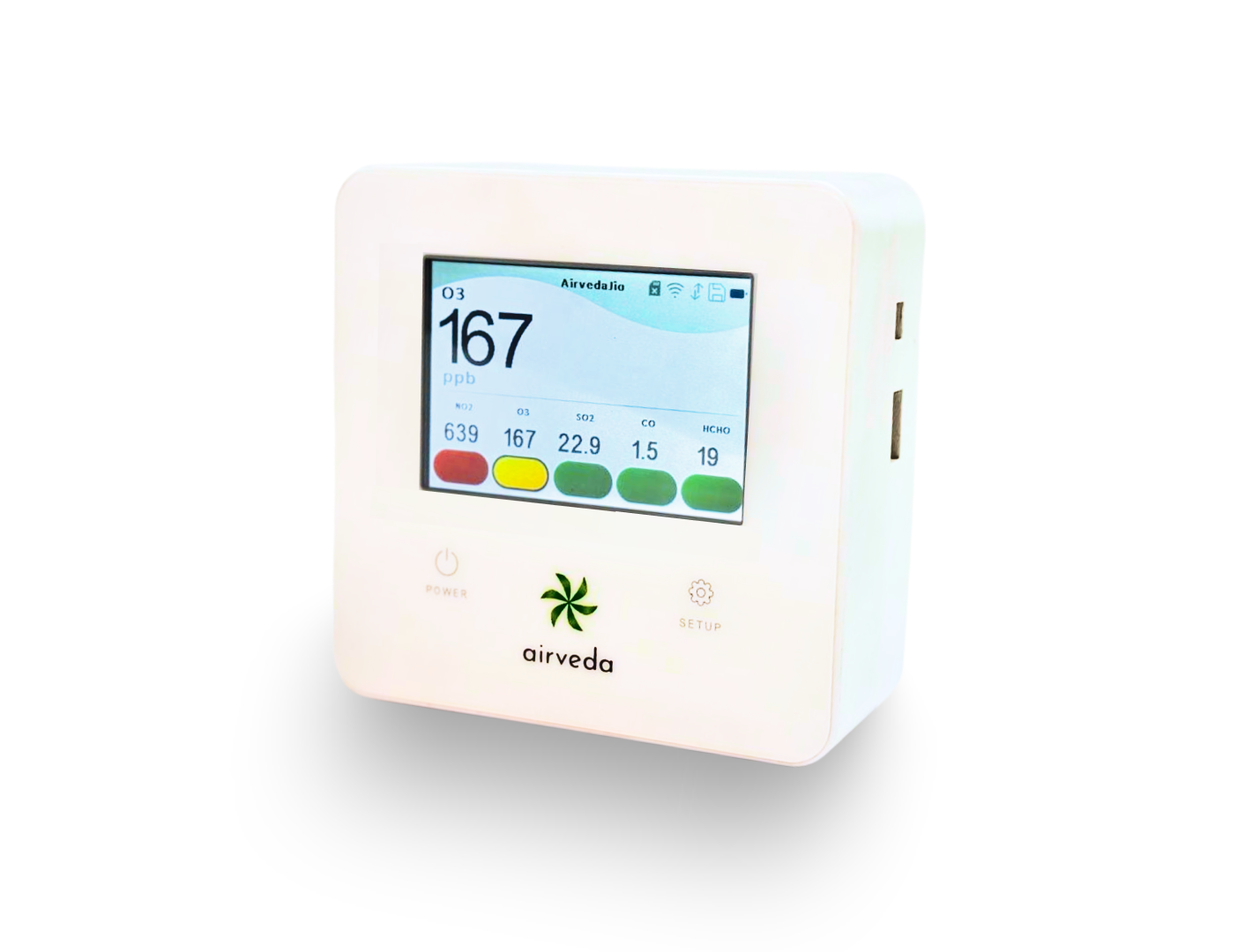

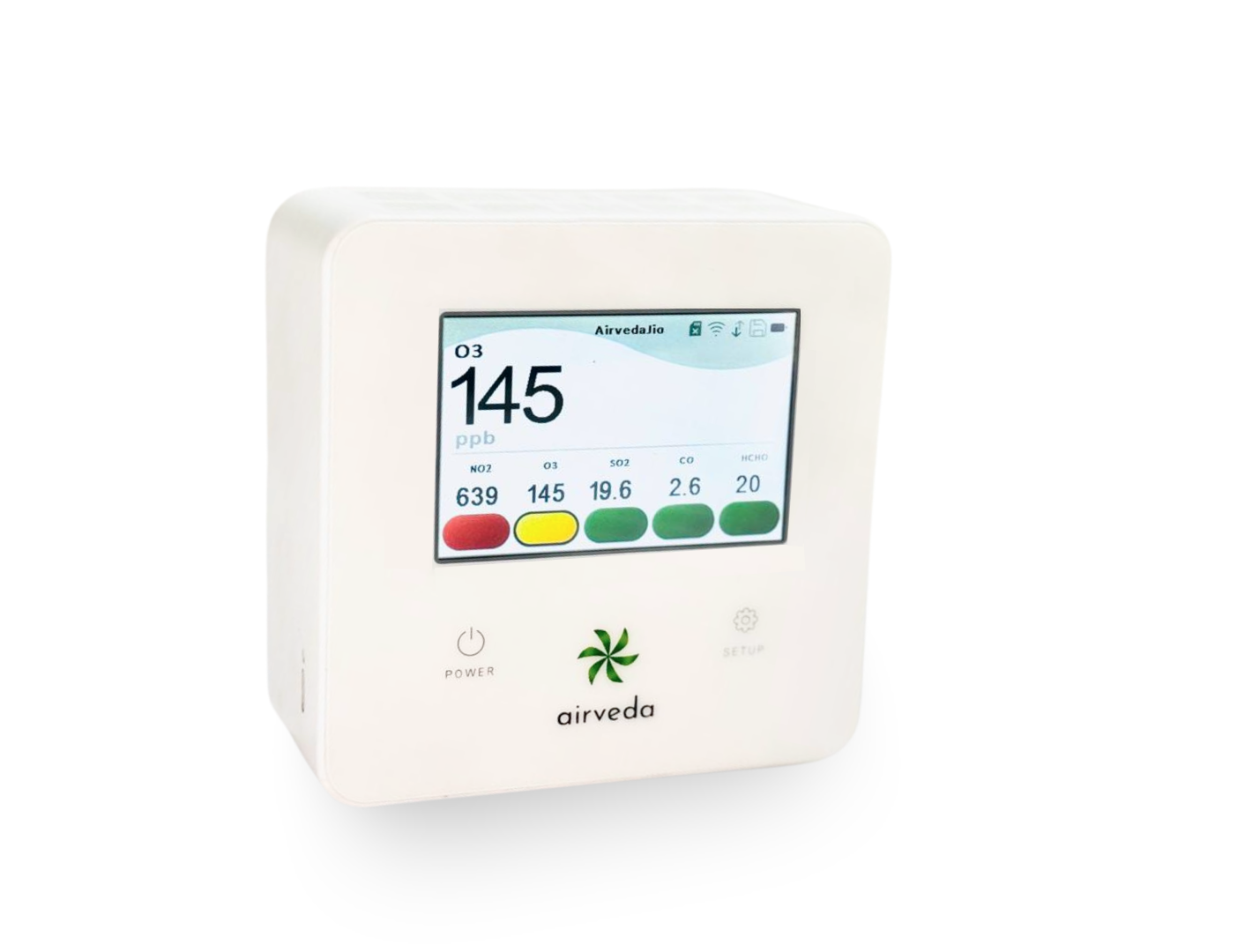

Touch Display

The monitor has a 3.5” touch display. Each parameter is color-coded with traffic light colors (green, yellow, red) based on alert limits configurable by you in the app. This enables you to quickly see if any parameter has exceeded the desired limits. You can also select the parameter you wish to display in a bold and big font so that it is visible easily from a far.


WI-FI And APP Enabled

Configure your Airveda monitor with up to 5 Wi-Fi networks including your home, office, or personal hotspot Wi-Fi. The monitor will automatically connect when the network becomes available. Choose between US AQI & Indian AQI. Understand air quality data trends with hourly, daily & monthly historical data. Plan activities to limit your exposure to pollution. Customize two air quality limits for your monitor via the app. Get real-time alerts when these limits are exceeded, so you take appropriate action such as using masks or turning on air purifiers or the kitchen chimney.


Local Memory

The monitor stores data locally if no Wi-Fi is available. Data is uploaded to the server when Wi-Fi becomes available. By reducing the frequency of measurement you can increase the number of days for which the data will be stored.


Extended Life Of Sensors

The default life of PM sensors is 1 year. However, a special feature allows the sensor to switch on/off at regular intervals to increase the life of the sensor considerably. This interval is configurable and can be configured to once every minute, 5 minutes, 10 minutes, and 20 minutes.


Optional Additions

We can support Wi-Fi/GSM/Ethernet for connectivity as well as MODBUS or BACNET for connecting with Building Management systems on request.


Model Number: AV-COSONOOZF-TW

PRODUCT TECHNICAL SPECIFICATIONS

Parameters

  • SO2
    • Range: 0-20ppm
    • Resolution: 0.1ppm
    • Error: < 0.2% +/0.2ppm
    • Warm up time: 30 sec
    • Working Principle: electrochemical sensor
    • Life of sensor: 24 months manufacturer warranty
    • Calibration: Factory calibrated.
  • NO2
    • Range: 0-20ppm
    • Resolution: 0.1ppm
    • Error: < 0.2% +/0.2ppm
    • Warm up time: 30 sec
    • Working Principle: electrochemical sensor
    • Life of sensor: 24 months manufacturer warranty
    • Calibration: Factory calibrated.
  • CO
    • Range: 0-1000 ppm
    • Resolution: 0.5 ppm
    • Error: +/-10ppm
    • Warm up time: 30 sec
    • Working Principle: electrochemical sensor
    • Life of sensor: 7 year in air
    • Calibration: Factory calibrated
  • Ozone
    • Range: 0-10 ppm
    • Resolution: 0.01ppm
    • Error: 15%
    • Warm up time: 3 min
    • Working Principle: electrochemical sensor
    • Life of sensor: 24 months manufacturer warranty
    • Calibration: Factory Calibrated
  • HCHO
    • Range: 0-999ppb
    • Resolution: 1ppb
    • Error: +/-20ppb
    • Warm up time: 30 sec
    • Working Principle: electrochemical sensor
    • Life of sensor: 6 years
    • Calibration: Factory calibrated

Power

  • Charger Input: 110-240V, 0.3A, 50-60Hz
  • Charger Output: 5V-2A (max) connected via micro USB socket
  • Power Consumption: 10 Watt (Peak Power)
  • Internal Battery: 2*2900mAH/3.7V Lithium-ion rechargeable battery
  • Battery Backup: 10-14 HOURS

General

  • Display: 3.5” TFT
  • Dimensions:
    • Back: Width: 120 mm, Height: 120 mm, Protrusion: 2 mm, Height(total): 122 mm
    • Front: Width: 117 mm, Height: 117 mm, Protrusion: 2 mm, Height(total): 119 mm
    • Depth: 50mm + 1~1.5 mm(polyester plate)
    • Protrusion location: 38mm from back of device.
  • WEIGHT: 370 grams
  • MATERIAL: ABS
  • IP RATING: IP51
  • Operating Temperature: 0-60 degC
  • Operating Humidity: 0-95%

Communication

  • CONNECTIVITY: Wi-Fi (supports configuring up to 5 Wi-Fi networks; auto-connect when available)
  • LOCAL MEMORY: 7000 time-stamped sample data sets; stores 2–40 days based on measurement frequency.
  • DATA INTERVAL: 30 Seconds to 20 min (Configurable via app)
  • Data push protocol: HTTP post request to host-server

APP CONFIGURABLE FEATURES

Note: After making changes to the app, the device must be turned off and on once, and connected to the internet to receive updated settings from the server.

  • ALERT LIMITS AND TRAFFIC LIGHT SIGNAL: Bullets show green/yellow/red based on two configurable limits; app notifications on exceedance.
  • DISPLAY NIGHT MODE: Turn off at night (hours configurable in app).
  • DISPLAY BRIGHTNESS: Three modes—battery, power, power saver—configurable via app.
  • MEASUREMENT FREQUENCY:
    • Default: Measure every 30 seconds; send every 1 minute.
    • Configurable: 30 sec,1min, 5min, 10min, 20min and 30 Min (measurement & sending).
    • Longer send frequency reduces power usage and extends battery backup; longer measurement frequency extends local memory and sensor life.
  • US & INDIAN AQI: Select via app/dashboards.

SERVICE CONTRACT

  • 1 Year warranty against any manufacturing defects.
  • Client responsible for getting devices to our facilities for all servicing. Service time 7-10 working days.
  • Warranty is void if the device is opened, tampered with or electronics damaged due to mechanical shock.
  • Warranty does not include sensor change.
