Airveda DUCT

Meet India’s first ACCURATE and APP-ENABLED, indoor HVAC air quality monitor for measuring DUCT air Quality in real-time.


Airveda PM2.5, PM10, and Temperature, Humidity, Wind Speed, Wind Direction, Light and Noise Monitor
Airveda PM2.5, PM10, and Temperature, Humidity, Wind Speed, Wind Direction, Light and Noise Monitor
airveda duct air quality monitor
airveda duct air quality monitor
airveda duct air quality monitor
airveda duct air quality monitor
airveda duct air quality monitor
airveda duct air quality monitor
airveda duct air quality monitor
DUCT SUPPORT

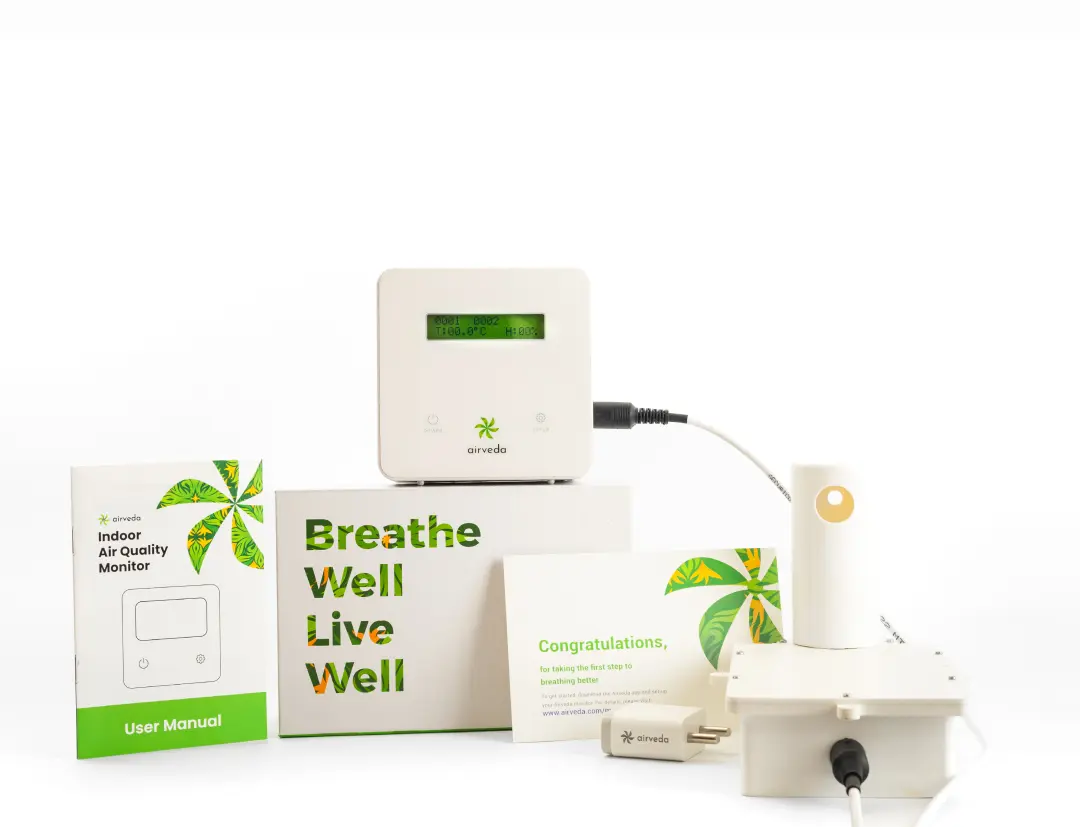

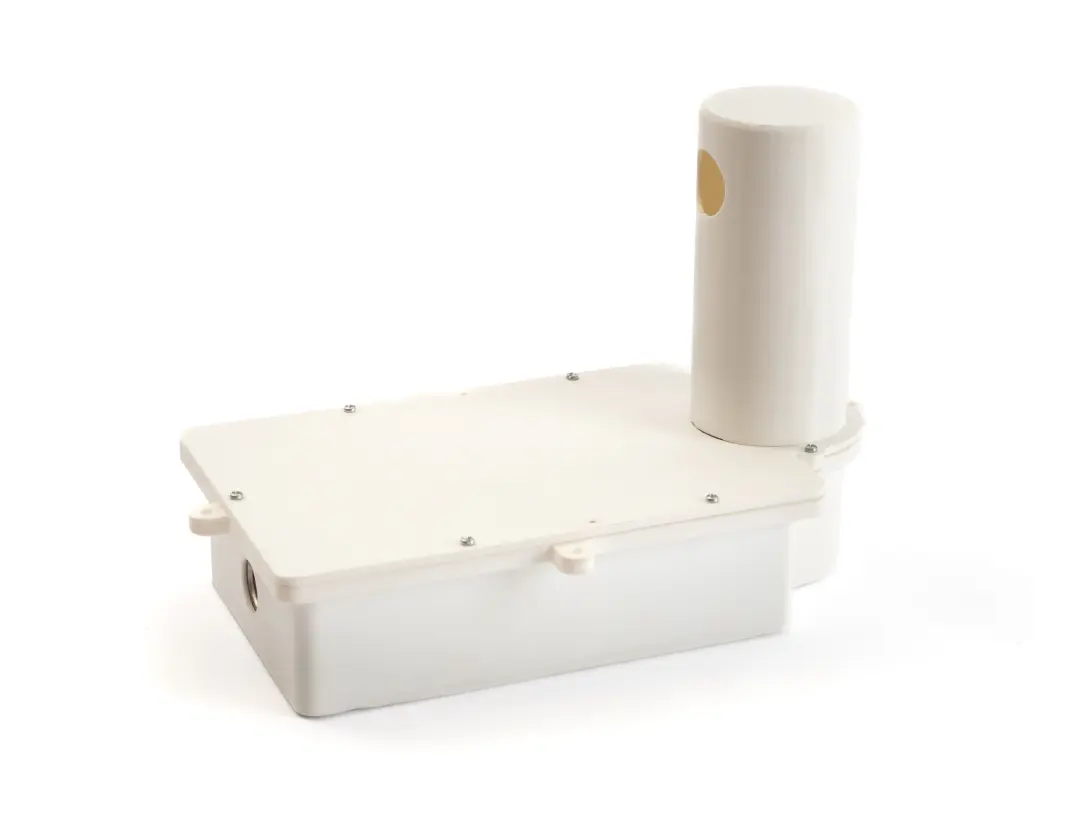

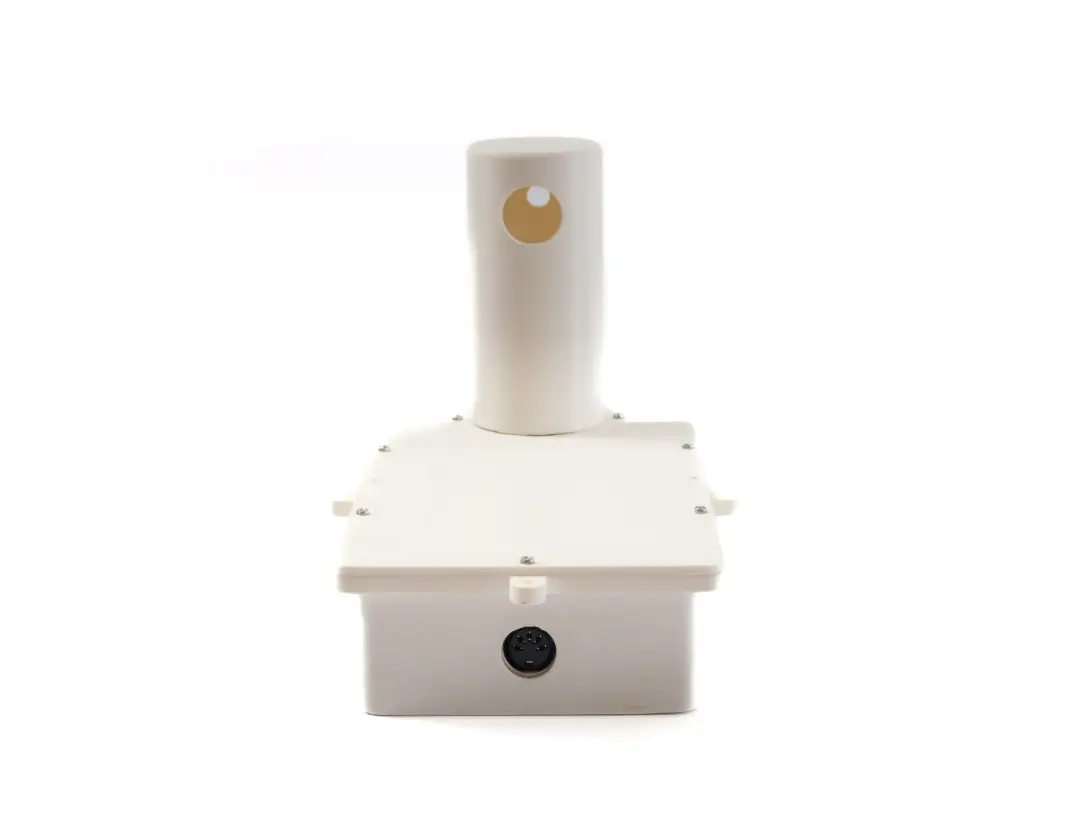

Comes with a tubing system which can be fitted into the HVAC duct. A built-in fan system pulls air from the duct so it can be measured in the device.


MADE IN INDIA - LOCALLY MANUFACTURED & SERVICED

Airveda monitors are completely manufactured and serviced in India. Sensors are also calibrated locally to suit Indian conditions. Sensors can be locally re-calibrated as well as replaced easily. Our manufacturing facility has been running for 30 years and is a trusted name in the local industry.


REAL-TIME, CONTINUOUSLY TRANSMITS DATA

The duct air quality monitor measures air quality every second, providing real-time data. The device supports Wi-Fi, to connect to the internet and transmit data to the server.

The monitor can be connected to up to 5 Wi-Fi networks including your home, office or personal hotspot. The monitor will automatically connect with the Wi-Fi when it becomes available.

Real-time and historic data and alerts can be viewed in Airveda app, available for free on iOS and Android.


MOBILE APP ENABLED

Real-time and historic data and alerts can be viewed in the Airveda app, available on iOS and Android.


Model Number: PM2510CTH-D-MB

PRODUCT DETAILS

Technical Specifications

  • Measurement
    • Measurement parameters: PM2.5, PM10, CO2, Temperature, Humidity.
    • PM2.5
      • Range: 0-999 μg/m3
      • Resolution: 1 μg/m3
      • Error: Maximum of ±10% and ±10μg/m3
      • Warm up time: 0 sec
      • Working Principle: Light Scattering
      • Calibration: Factory calibrated. Sensors can be changed on-site using a sensor kit. Recommend annual sensor change.
    • PM10
      • Range: 0-1999 μg/m3
      • Resolution: 1 μg/m3
      • Error: Maximum of ±10% and ±10μg/m3
      • Warm up time: 0 sec
      • Working Principle: Light Scattering
      • Life of Sensor: 1-year
      • Calibration: Factory calibrated. Sensors can be changed on-site using a sensor kit. Recommend annual sensor change.
    • CO2
      • Range: 0-5000 ppm (can be extended to 10,000 ppm on request)
      • Resolution: 1 ppm
      • Error: 3% or 50ppm
      • Warm up time: 2 min
      • Working Principle: NDIR dual wavelength
      • Calibration: Can be calibrated on-site by long pressing the SETUP button.
    • Temperature
      • Range: 0 deg C to 60 deg C
      • Resolution: 0.1 deg C
      • Error: 1 deg C
      • Warm up time: 0 Seconds
      • Working Principle: CMOS
      • Calibration: Can be calibrated using the mobile app in configuration mode. Under Advanced Settings.
    • Humidity
      • Range: 0-90%
      • Resolution: 1%
      • Error: 3%
      • Warm up time: 0 second
      • Working Principle: CMOS
      • Calibration: Can be calibrated using the mobile app in configuration mode. Under Advanced Settings.

Power

  • Power
    • AC Mains Power Input: 110-240V AC, 0.3A, 50-60Hz (3m power cable provided)
    • Power Consumption: 10 Watt (Peak Power)
    • Battery Specs: 2*2900mAH/3.7V Lithium-ion rechargeable battery
    • Battery Backup: 8-10 hours

General

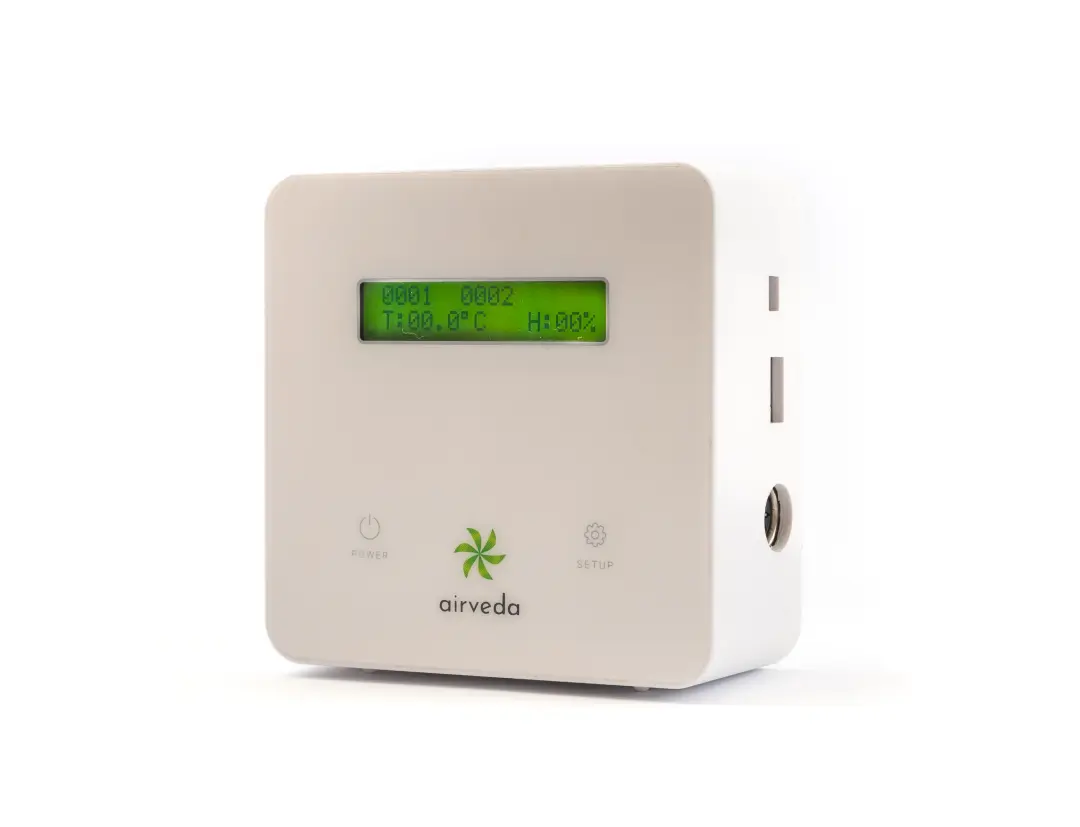

  • Display: 2 Line LCD Display (Inside the box)
  • Size:
    • Device:
      • Breadth: 11.7cm
      • Length : 11.7cm
      • Height: 6cm
    • Duct Monitor:
      • Breadth: 13cm
      • Length : 21.3cm
      • Height: 10cm
  • Weight: 360 gm
  • Material: ABS
  • IP Rating: IP55
  • Operating Temperature: 0-60 degC
  • Operating Humidity: 0-95% RH

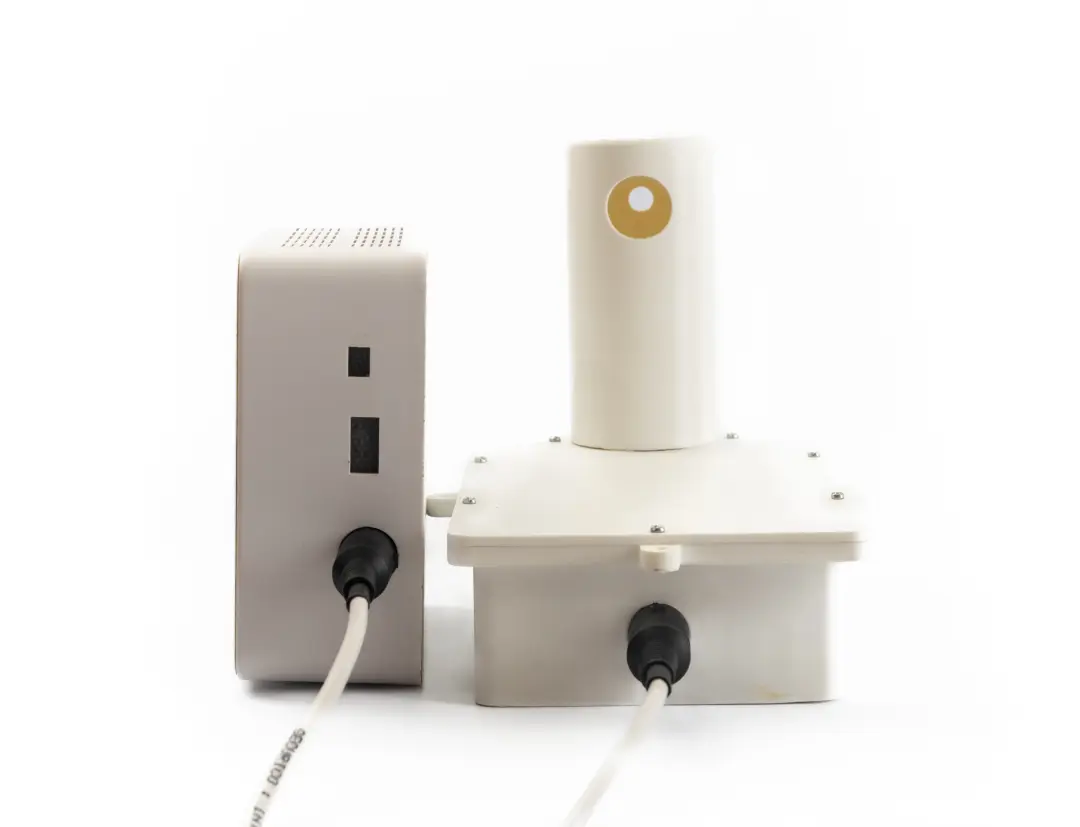

  • Mounting Options:
    • Wall mounted for base unit
    • duct mounted for remote sensor unit

APP CONFIGURABLE FEATURES

Note: After making changes via the app, the device must be turned off and on once, and connected to the internet to receive updated settings from the server.

  • Measurement Frequency
    • Default:
      • Cloud Storage: Data is measured every 30 seconds (measurement frequency) and sent to the server every 1 minute (Sending Frequency).
    • Configurable Measurement frequency:
      • Can be changed to 30 sec, 1 min, 5 min, 10 min, 20 min & 30 mins via mobile app.
    • Configurable Sending Frequency:
      • Can be changed to 1 min, 5 min, 10 min, 20 min & 30 mins via mobile app.
    • Note:
      • Longer sending frequency reduces power usage and battery backup as sending data to the server is very battery intensive.
      • Longer measurement frequency ensures longer local memory as a fixed number of items are stored in the memory. Also the sensor is turned off in between intervals which may help extend sensor life.
  • Alert Limits
    • Alert limits can be configured for CO2 via the app.
    • Get notifications on the app when alert limits are exceeded

Communication

  • Connectivity
    • Wi-Fi:
      • Supports configuring up to 5 Wi-Fi networks including your home, office, or personal hotspot.
      • Device will automatically connect with the Wi-Fi when it becomes available.
  • Local Memory
    • Local memory stores data for 2 days to 40 days based on the measurement frequency.
  • Data Interval
    • 30 Seconds to 20 min (Configurable via app).
  • Data Push Protocol
    • HTTP post request to host-server

SERVICE CONTRACT

  • 1 Year warranty against any manufacturing defects.
  • Client responsible for getting devices to our facilities for all servicing. Service time 7-10 working days.
  • Warranty is void if the device is opened, tampered with or electronics damaged due to mechanical shock.
  • Warranty does not include sensor change.
