Meet India's first Accurate and APP-Enabled air quality monitor.
Accurate
Measures PM1.0, PM2.5, PM10, AQI, Temperature & Humidity. Airveda monitors use High quality laser sensors, calibrated individually for Indian conditions against BAM (Beta Attenuation Monitor- the most advanced system for measuring ambient air quality.) Temp and humidity sensors are calibrated by a master source traceable to NABL.
Portable And Real-Time
The small size and long battery life of 4-6 hours makes Airveda monitors extremely portable. Can be charged using any USB power outlet in your car, laptop or power bank. The monitor measures your air quality every second so you can understand the air quality where you are, in real-time.

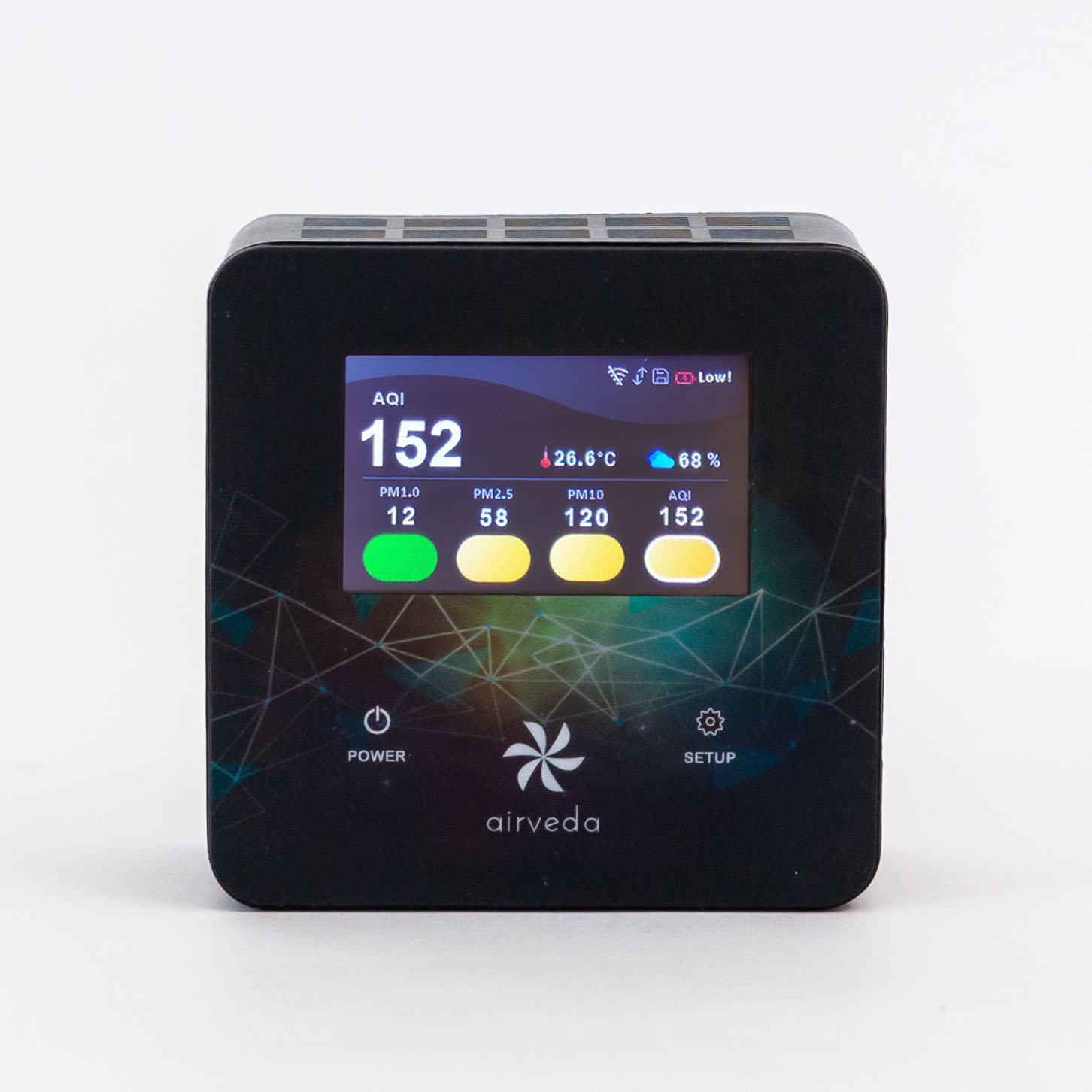

Touch Display
The monitor has a 3.5” touch display. Each parameter is color coded with traffic light colors (green, yellow, red) based on alert limits configurable by you in the app. This enables you to quickly see if any parameter has exceeded desired limits. You can also touch to select the parameter you wish to display in bold and big font so that it is visible easily from a far.
Made In India - Locally Manufactured & Serviced
Airveda monitors are completely manufactured and serviced in India. Sensors are also calibrated locally to suit Indian conditions. Our manufacturing facility has been running for 30 years and is a trusted name in the local industry.
WI-FI And APP Enabled
Connect to your home, office or personal hotspot Wi-Fi and remotely monitor data and get alerts in Airveda app, available for free on iOS and Android. View current and historic data, understand your exposure over time, as well as compare with outdoor air quality in your city.
Local Memory
Monitor stores data locally if no Wi-Fi is available for up-to two days and data is uploaded to server when Wi-Fi becomes available.
Extended Life Of Sensors
The default life of PM sensors is 1 year. However, a special feature allows the sensor to switch on/off at regular intervals to increase the life of the sensor considerably. This interval is configurable and can be configured to once every minute, 5 minutes, 10 minutes and 20 minutes.
Model Number: PM12510TH-T
₹ 18999 (inclusive of all taxes) ₹ 21000
Add to Cart
PRODUCT DETAILS
Technical Specifications
- Measurement
- Measurement parameters: PM1.0, PM2.5, PM10, Temperature & Humidity
- PM
- Range of PM1.0: 0-999 μg/m³
- Range of PM2.5: 0-999 μg/m³
- Range of PM10: 0-1999 μg/m³
- Minimum resolution of < 0.3 μm
- Relative error: Maximum of ±10% and ±10 μg/m³
- Response time: Less than 10 seconds when scene changes
- Temperature
- Range: 10 to 60°C
- Accuracy: 1°C
- Resolution: 1°C
- Humidity
- Range: 0 to 90% RH
- Accuracy: 3%
- Resolution: 1%
- Portable
- Size: 11.6 cm x 11.6 cm x 6 cm
- Power Voltage: 5V
- Can be charged via laptop/car USB
- Weight: 370 g
- 2*2900 mAh re-chargeable battery
- Display
- 3.5” Touch display
- Desired parameter to be displayed as bold can be pressed to select.
- Limits for red, yellow, green color can be configurable via app.
Warranty & Support
- 1 Year warranty against any manufacturing defects.
- Client responsible for getting the device to our facilities for all servicing. Service time: 1 week.
- Warranty is void if the device is opened, tampered with, or electronics damaged due to mechanical shock.
- Sensor change and calibration are not included in the warranty.
Working Principle
- PM sensor uses laser scattering principle: Light scattering can be induced when particles go through the detecting area. The scattered light is transformed into electrical signals, which are then amplified and processed. The number and diameter of particles can be obtained by analysis because the signal waveform has certain relations with the particles' diameter.
- Temperature sensor is CMOS, Humidity sensor is Capacitive.
Tested and Calibrated Against
- PM: Beta Attenuation Monitor (BAM)
- Temperature & Humidity calibrated with a master traceable to NABL.
Wi-Fi Connectivity
- Connects to Wi-Fi. Data available in Android and iOS apps along with Indian AQI, day, week, month history as well as outdoor data in different parts of the city.
