Measures PM2.5, PM10, and Temperature, Humidity, Wind Speed, Wind Direction, Light and Noise and comes with Wi-Fi and GSM connectivity.
As air quality is becoming more and more part of overall weather and climate data, this model combines air quality parameters like PM2.5, PM10 and weather parameters like Wind Speed, Wind Direction, Light and Noise into a single device.
Accurate
The monitor uses High quality laser sensors, calibrated individually for Indian conditions against BAM (Beta Attenuation Monitor- the most advanced system for measuring ambient air quality.) to measure PM2.5 and PM10. Temperature and humidity sensors are calibrated by a master source traceable to NABL.The device uses an ultrasonic WS WD sensor which has no moving parts, ensuring longer life and ease of installation and maintenance.
Weather Proof

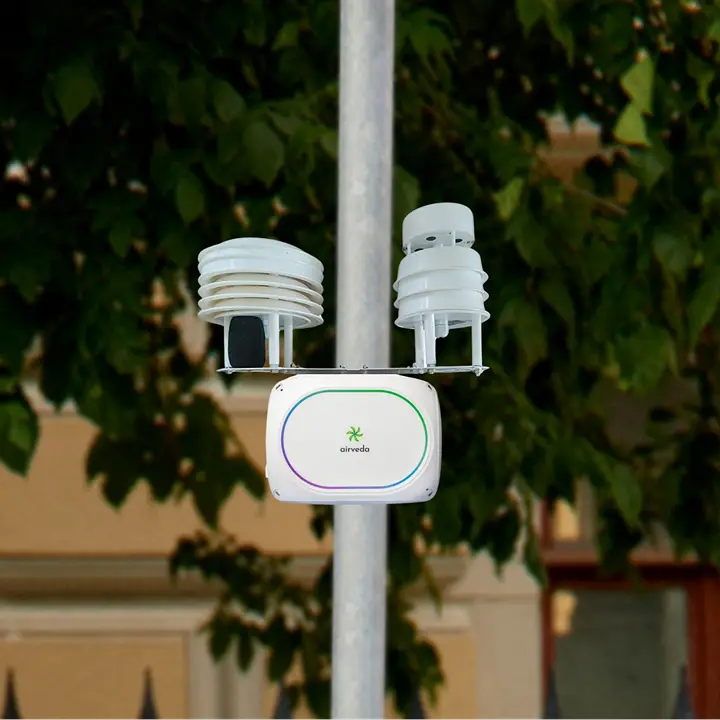

The outdoor monitor comes in an IP55 box to ensure protection from the elements as well as dust.
Made In India - Locally Manufactured & Serviced
Airveda monitors are completely manufactured in India. Sensors are calibrated locally to suit Indian conditions but can also be remotely calibrated for any specific geography if reference data is provided for that location. Sensors can be remotely re-calibrated as well as replaced on-site.Our manufacturing facility has been running for 30 years and is a trusted name in the local industry.
Supports GSM & WI-FI Connectivity
This device supports both Wi-Fi and GSM connectivity and will connect to and switch between either network depending on availability. You may configure your Airveda monitor with up to 5 Wi-Fi networks. This device also supports GSM connectivity, which allows you to connect this device to 2G/3G/4G network by inserting the SIM of the preferred network provider.
Robust Data
Protection against power outage: 6-8 hours of battery support, this Monitor can optionally also be equipped with Solar backup to tackle power cuts at the remote location.
Protection against internet outage: Local memory can store data up to 2 days of data at 1 min frequency in case of internet outage and automatically upload to server when internet becomes available. Measurement and sending frequency of data can be updated remotely which can allow data to be stored for additional days and/or reduce power usage.
APP Enabled

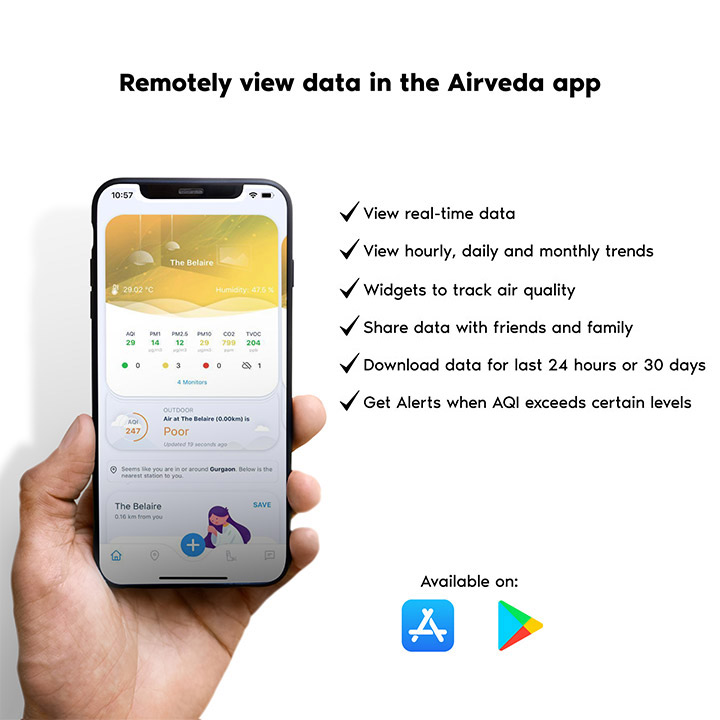

Remotely monitor data and get alerts in Airveda app, available for free on iOS and Android. View current and historic data, understand your exposure over time.
Model Number: PM2510TH-WSWD-LN-WP-GSM
PRODUCT DETAILS
Technical Specifications
- Measurement
- Measurement parameters: PM2.5, PM10, CO2, Temp, Humidity
- PM
- Range of PM2.5: 0-999 μg/m3
- Range of PM10: 0-1999 μg/m3
- Minimum resolution of < 0.3 μm
- Relative error Maximum of ±10% and ±10μg/m3
- Response time: Less than 10 seconds when scene changes
- Warm Up Time: 20 seconds
- Temperature
- Range: 0 deg C to 65 deg C
- Accuracy: 1 deg C
- Resolution: 0.1 deg C
- Response Time: 2 seconds
- Warm-Up time: 5 seconds
- Humidity
- Range: 0 to 99%
- Accuracy: +/-3%
- Resolution: 1%
- Response Time: 2 seconds
- Warm-Up time: 5 seconds

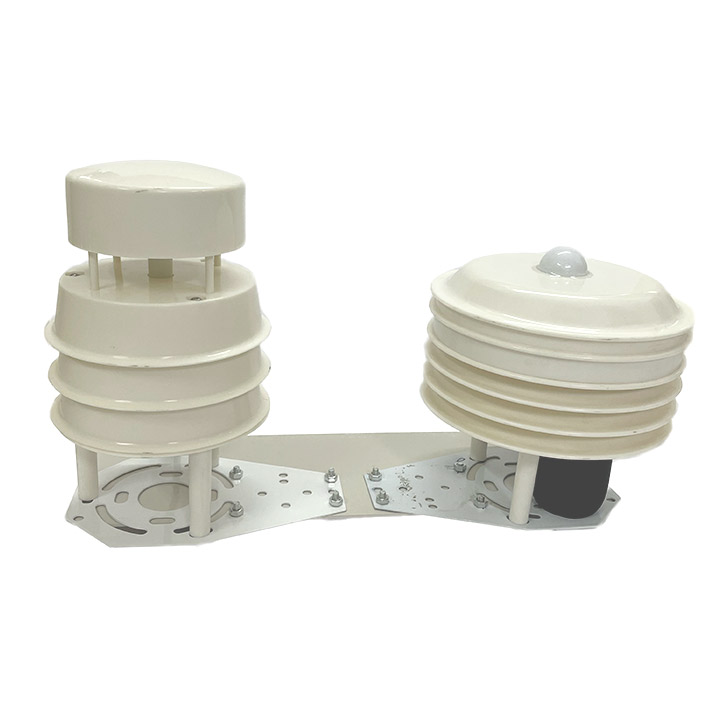

- Wind Speed (Ultrasonic sensor)
- Range: 0 - 60 m/s (116 knots)
- Accuracy: ±2%
- Resolution: 0.01 m/s (0.02 knots)
- Warm-Up time: <2 seconds
- Wind Direction (Ultrasonic sensor)
- Range: 0 - 359 deg
- Accuracy: ±3%
- Resolution: 1 deg
- Warm-Up time: 0.25 seconds
- Noise
- Range: 30-130db
- Accuracy: 20%
- Resolution: ±3db@23±5 degC
- Warm-Up time: 200ms
- Light
- Range: 1-200000 lux
- Accuracy: 5%
- Resolution: 1 lux
- Warm-Up time: 0.1 sec
- Dimensions:
- Cabinet: 24cm X 16cm X 9cm
- Noise Sensor: Noise: Height - 14.5cm,Diameter - 14cm
- Wind Speed sensor: Height - 19cm, Diameter - 12cm
- Total: 45cm X 34cm
- Power
- Power voltage : 220V
- 2900mAh re-chargeable battery
- 4-6 hours battery backup
- Local Memory
- Local memory stores data for up to 2 days
- Tested And Calibrated
- Beta Attenuation Monitor (BAM)
Warranty & Support
- 1 Year warranty against any manufacturing defects.
- Client responsible for getting device to our facilities for all servicing. Service time 1 week.
- Warranty is void if device is opened, tampered with or electronics damaged due to mechanical shock.
- Sensor calibration and replacement is chargeable.
- Sensor change and calibration is not included in warranty.
Connect Your Airveda Monitor To Free Mobile APP on IOS Or Android And Remotely Monitor Air Quality From Any Location
Real-Time Data
View Data Trends
Get Air Quality Alerts
View Outdoor Data
Airveda Dashboard Plan
You may optionally purchase our Dashboard Plan which gives you access to our state-of-the-art web Dashboard which provides a comprehensive solution for managing, analyzing and understanding air quality in your projects. Airveda Dashboard is a RESET certified Data Provider and can be used for getting RESET certification for your projects.
