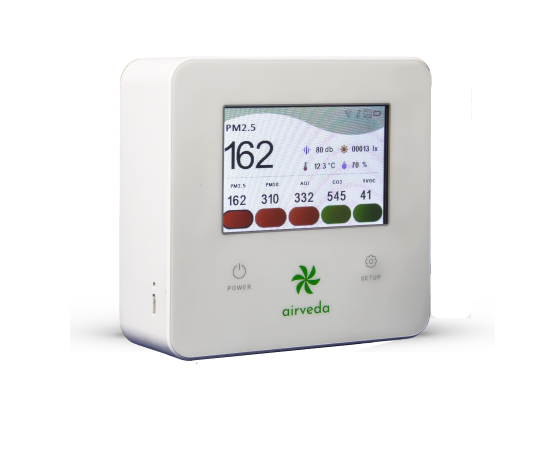

Airveda Pro Touch with Light & Noise

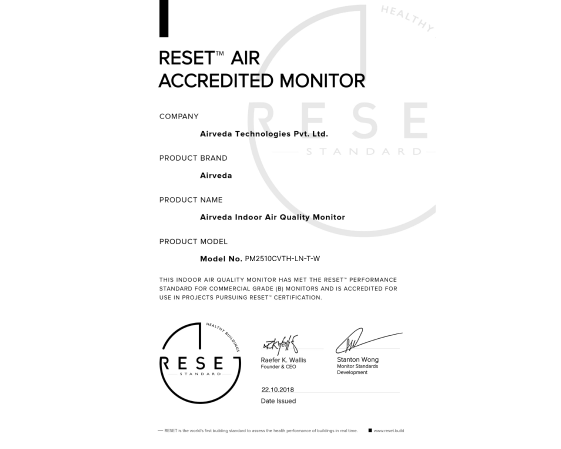

RESET & CE certified Air quality monitor classified as a commercial Grade B monitor. RESET Accreditation makes the Airveda Monitors accredited for use in RESET and WELL (International WELL Building Institute™) projects.


Airveda PM2.5, PM10, and Temperature, Humidity, Wind Speed, Wind Direction, Light and Noise Monitor
Airveda PM2.5, PM10, and Temperature, Humidity, Wind Speed, Wind Direction, Light and Noise Monitor
airveda-eye
airveda-eye
airveda-eye
airveda-eye
airveda-eye
airveda-eye
Accurate

Measures PM2.5, PM10, CO2, TVOC, Temperature, Humidity, Light, and Noise and comes with Wi-Fi support. The monitor uses a high-quality laser sensor to measure PM2.5 & PM10, calibrated against BAM (Beta Attenuation Monitor - used by govt.). An independent study showed a correlation greater than 90% with BAM. The CO2 sensor is a high-accuracy dual wavelength NDIR CO2 sensor, which self-calibrates and allows manual calibration. Temp and humidity are calibrated by a master source traceable to NABL. TVOC uses commercial-grade MEMS metal oxide semiconductor sensors and also self-calibrates. Light and noise are factory-calibrated.


Portable And Real-Time

The small size and long battery life of 6-7 hours make Airveda monitors extremely portable. Can be charged using any USB power outlet in your car, laptop, or power bank. The monitor measures your air quality every second so you can understand the air quality where you are, in real time.

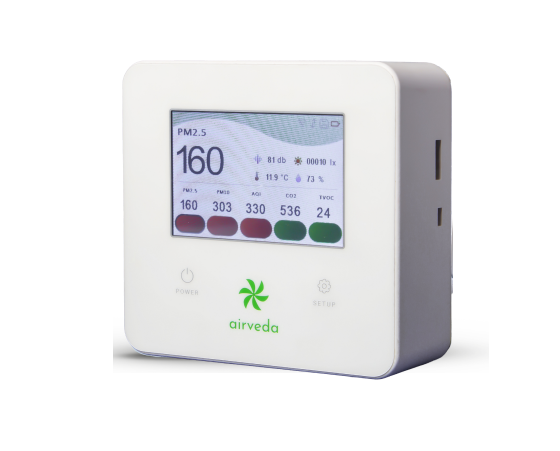

Touch Display

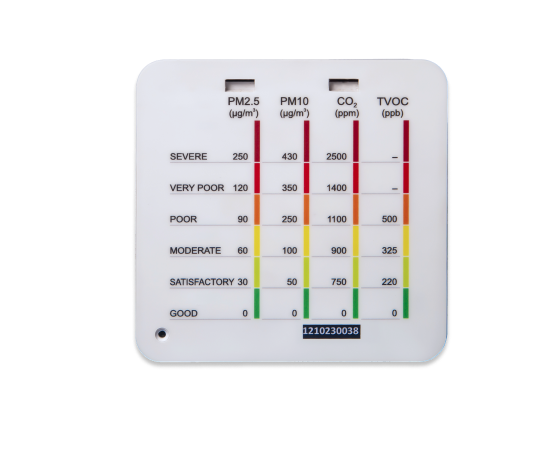

The monitor has a 3.5” touch display. Each parameter is color-coded with traffic light colors (green, yellow, red) based on alert limits configurable by you in the app. This enables you to quickly see if any parameter has exceeded the desired limits. You can also select the parameter you wish to display in a bold and big font so that it is visible easily from a far.


WI-FI And APP Enabled

Configure your Airveda monitor with up to 5 Wi-Fi networks including your home, office, or personal hotspot Wi-Fi. The monitor will automatically connect when the network becomes available. Choose between US AQI & Indian AQI. Understand air quality data trends with hourly, daily & monthly historical data. Plan activities to limit your exposure to pollution. Customize two air quality limits for your monitor via the app. Get real-time alerts when these limits are exceeded, so you take appropriate action such as using masks or turning on air purifiers or the kitchen chimney.


Local Memory

The monitor stores data locally if no Wi-Fi is available. Data is uploaded to the server when Wi-Fi becomes available. By reducing the frequency of measurement you can increase the number of days for which the data will be stored.


Extended Life Of Sensors

The default life of PM sensors is 1 year. However, a special feature allows the sensor to switch on/off at regular intervals to increase the life of the sensor considerably. This interval is configurable and can be configured to once every minute, 5 minutes, 10 minutes, and 20 minutes.


Optional Additions

We can support Wi-Fi/GSM/Ethernet for connectivity as well as MODBUS or BACNET for connecting with Building Management systems on request.


Model Number: PM2510CVTH-LN-T-W

PRODUCT DETAILS

Technical Specifications

  • Measurement
    • Measurement parameters: PM2.5, PM10, CO2, Temp, Humidity, Light, and Noise
    • PM
      • Range of PM2.5: 0-999 μg/m³
      • Range of PM10: 0-1999 μg/m³
      • Minimum resolution of < 0.3 μm
      • Relative error: Maximum of ±10% and ±10 μg/m³
      • Response time: Less than 10 seconds when scene changes
      • Working Principle: Light Scattering
    • CO2
      • Range: 0 to 5000 ppm
      • Accuracy: 50 ppm ±3%
      • Response time: 2 minutes
      • Self-calibrating. Can be manually calibrated by taking device outdoors and long pressing Setup Button.
    • Temperature
      • Range: 10 to 60°C
      • Accuracy: 1°C
      • Resolution: 1°C
      • Working Principle: CMOS
    • Humidity
      • Range: 0 to 90% RH
      • Accuracy: 3%
      • Resolution: 1%
      • Working Principle: Capacitive
    • Light
      • Range: 0 - 65535 lx
      • Sensitivity: ±20%
      • Warm-up time: 180 ms
      • Minimum Detection: 1 lx
      • Working Principle: Digital ambient light sensor
    • Noise
      • Range: 53 - 86 dB
      • Sensitivity: -38 dB
      • Warm-up time: 1 second
      • Minimum Detection: 53 dB
      • Working Principle: Piezoelectric
  • Portable

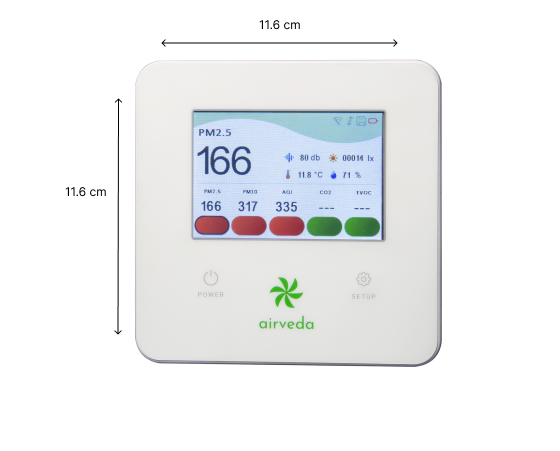

    • Size: 11.6cm x 11.6cm x 6cm
    • Power Voltage: 5V
    • Can be charged via laptop/car USB
    • Weight: 370 grams
    • 2*2900 mAh re-chargeable battery
  • Display
    • 3.5” Touch display
    • Desired parameter to be displayed as bold can be pressed to select.
    • Limits for red, yellow, green color can be configured via app.

Warranty & Support

  • 1 Year warranty against any manufacturing defects.
  • Client responsible for getting device to our facilities for all servicing. Service time: 1 week.
  • Warranty is void if device is opened, tampered with, or electronics damaged due to mechanical shock.
  • Sensor change and calibration are not included in warranty.

Working Principle

  • PM sensor uses laser scattering principle: Light scattering can be induced when particles go through the detecting area. The scattered light is transformed into electrical signals and these signals will be amplified and processed. The number and diameter of particles can be obtained by analysis because the signal waveform has certain relations with the particles diameter.
  • CO2 sensor is dual wavelength NDIR based (Nondispersive Infrared Sensor).
  • Temperature sensor is CMOS, Humidity sensor is Capacitive.

Tested and Calibrated Against

  • PM: Beta Attenuation Monitor (BAM)
  • CO2: Can be self-calibrated to 400 ppm outdoors by taking monitor outdoors and long pressing Setup button on monitor.
  • Temp & Humidity calibrated with a master traceable to NABL.
  • TVOC
  • NOISE
  • LIGHT

Wi-Fi Connectivity

  • Connects to Wi-Fi. Data available in Android and iOS apps along with Indian AQI, day, week, month history as well as outdoor data in different parts of the city.
