Outdoor LED Display

LED displays that can be connected with Airveda monitors to display air quality outdoors.

Airveda PM2.5, PM10, and Temperature, Humidity, Wind Speed, Wind Direction, Light and Noise Monitor

Airveda PM2.5, PM10, and Temperature, Humidity, Wind Speed, Wind Direction, Light and Noise Monitor

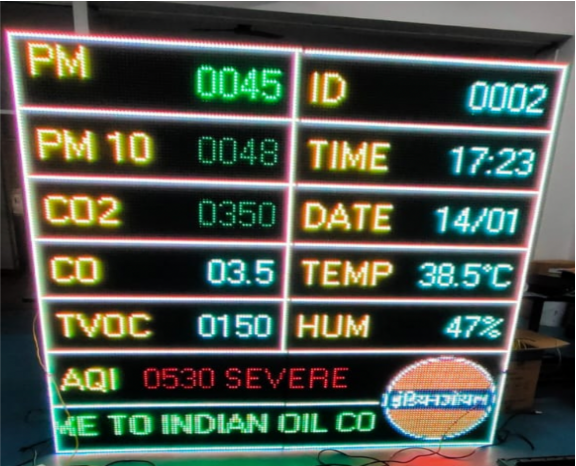

**6ft*6ft RGB Display**

Parameters	PM2.5, PM10, CO2, CO, TVOC, Temperature, Humidity, Date, Time, AQI (Can be customized to alternate parameters)
Size	6feet * 6 feet
Character Height	110mm
Mounting Options	Wall Mounted
Color	RGB
AQI Format	Number + Severity text
Connectivity Options	Modbus RS485 or GSM
AC Power consumption	2816 Watt
Display Details	Parameters fixed on top Running customized text on bottom with company logo

Model Number: AV-LED-WP-RGB-6x6

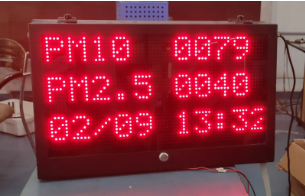

**2ft*1ft Red Display**

Parameters	PM2.5, PM10, Date, Time, AQI
Size	2feet * 1feet
Character Height	70mm
Mounting Options	Wall Mounted
Color	Red on Black
AQI Format	Number
Connectivity Options	Modbus RS485 or GSM
AC Power consumption	150 Watt
Display Details	Switches between PM10, PM2.5, Date, Time PM10, PM2.5, AQI Frequency of switch: every 10 seconds

Model Number: AV-LED

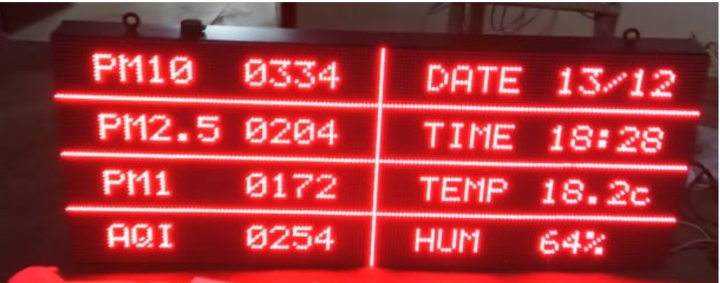

**5ft* 2ft Red Display**

Parameters	PM2.5, PM10, Temperature, Humidity, Date, Time, AQI
Size	5feet * 2feet
Character Height	70mm
Mounting Options	Wall Mounted
Color	Red on Black
AQI Format	Number
Connectivity Options	Modbus RS485
AC Power consumption	600 Watt
Display Details	Switches between PM10, PM2.5, Date, Time PM10, PM2.5, AQI Frequency of switch: every 10 seconds

Model Number: AV-LED-WP-5x2
