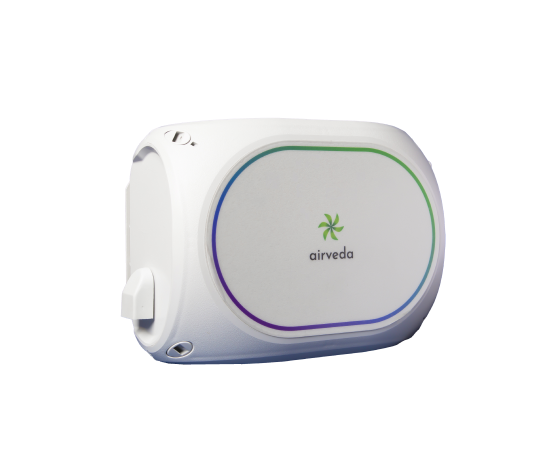

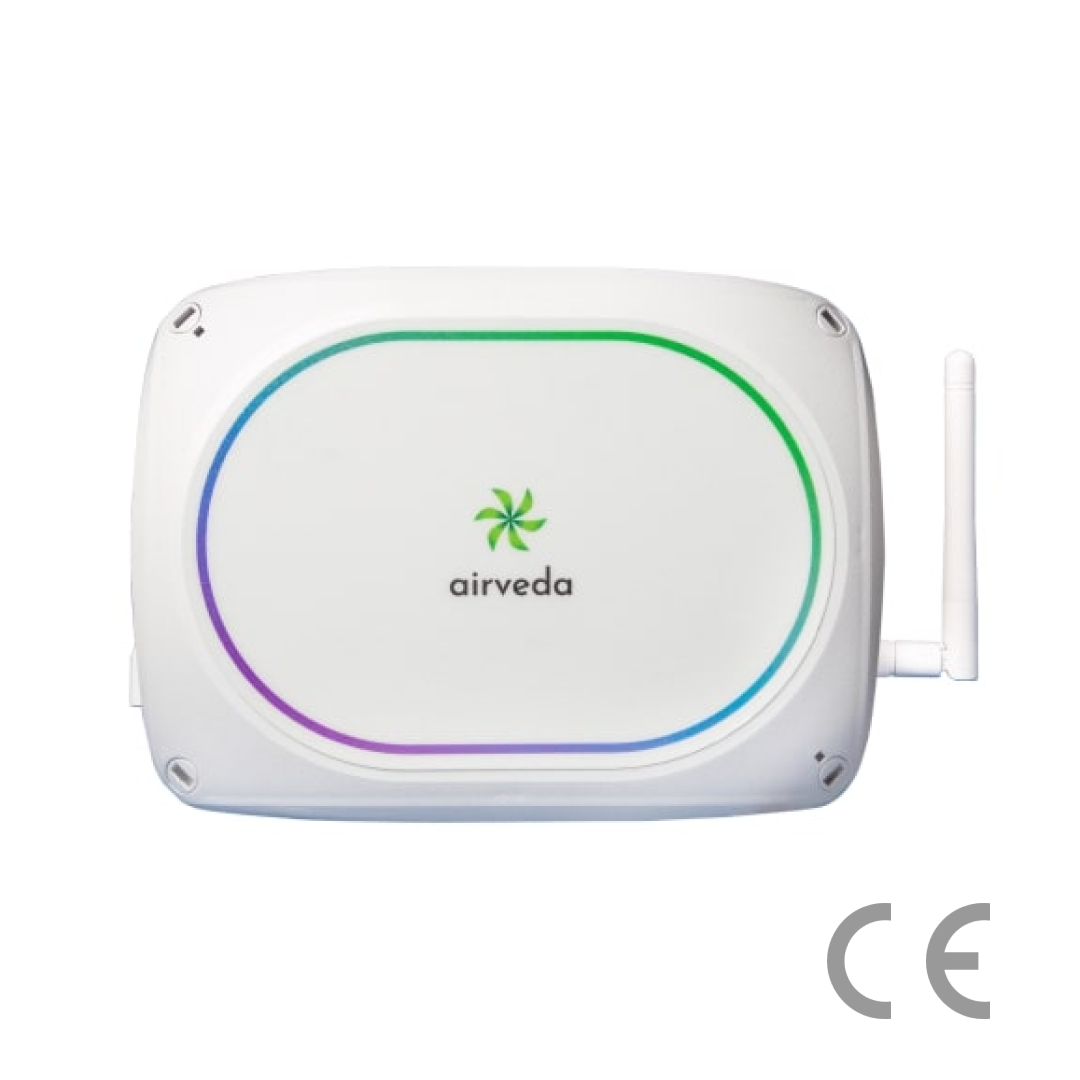

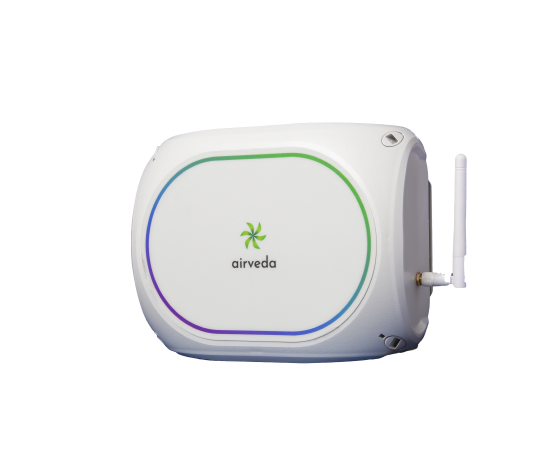

Introducing India's first, all-weather air quality monitor equipped with GPS for precise measurements of PM concentration, temperature, and humidity in real-time.
Weather Proof
Comes in an IP65 box to ensure protection from dust and the elements.
GPS Enabled

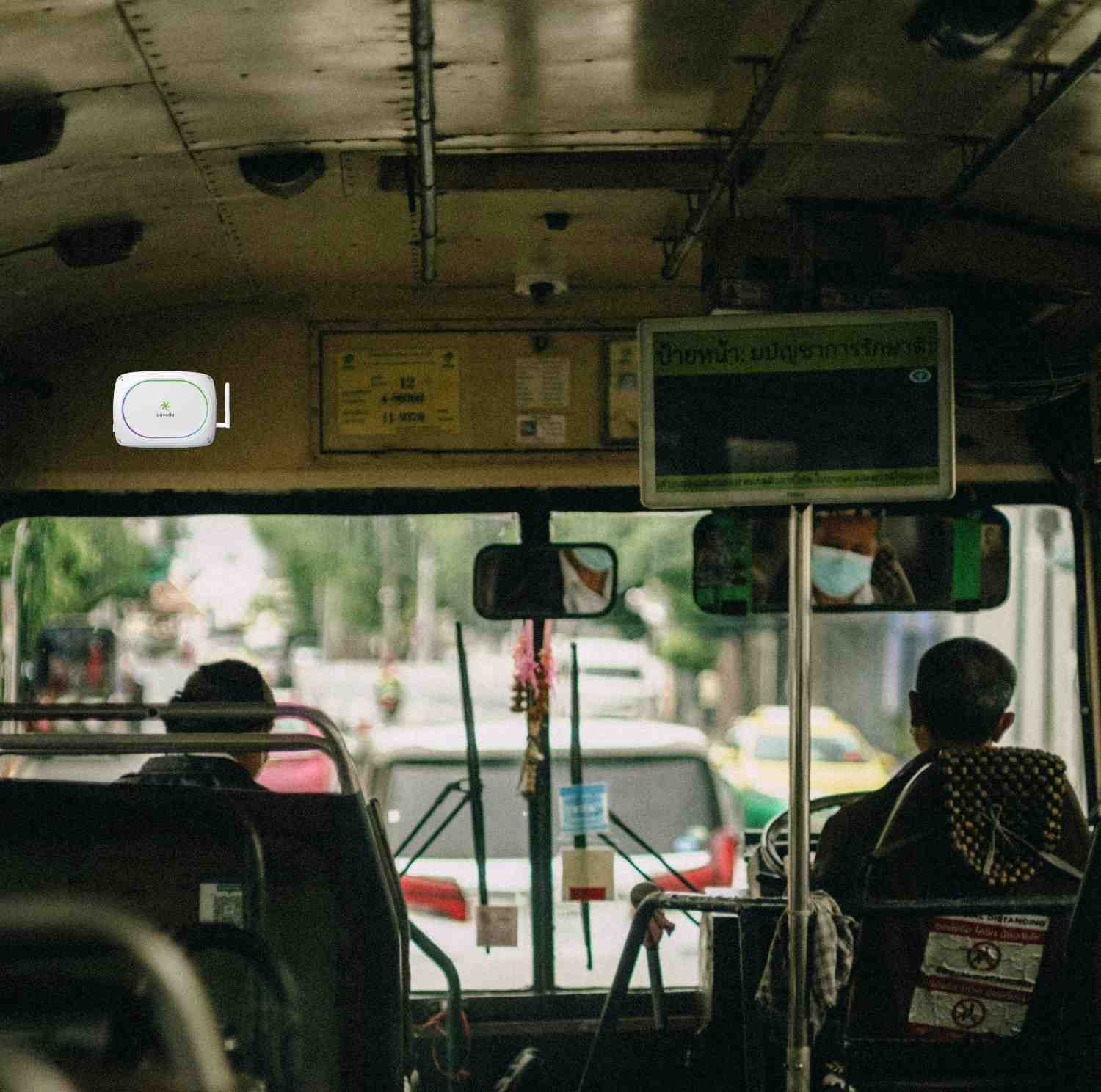

This device comes with GPS support and lets you monitor and plot air quality on a map as it moves through a particular route.
Real-Time, Continuously Transmits Data
The monitor sends location as well as air quality data to the server every 15 seconds when in journey mode enabling us to plot a dense graph of air quality readings.
Wi-Fi & GSM enabled
The device supports Wi-Fi as well as GSM, to connect to the internet and transmit data to the server. GSM can be used with a sim card to enable the monitor to send data to the server on the go. The device also supports Wi-Fi and can be configured with a hotspot if Wi-Fi is used to support the internet when on-the-go.
Made In India - Locally Manufactured & Serviced
Airveda monitors are completely manufactured and serviced in India. Sensors are also calibrated locally to suit Indian conditions. Sensor calibration can be updated remotely, or at our factory and sensors can be replaced on-site. Our manufacturing facility has been running for 30 years and is a trusted name in the local industry.
Mobile APP Enabled
You can set the device in journey mode when on a journey. Data is sent every 15 seconds to the server and can be plotted on a map.
Model Number: PM2510TH-WPGSM-EYE-GPS
PRODUCT DETAILS
Technical Specifications
- Measurement parameters: PM2.5, PM10, Temperature, Humidity, Latitude, Longitude.
- PM2.5
- Range: 0-999 μg/m3
- Resolution: 1 μg/m3
- Error: Maximum of ±10% and ±10μg/m3
- Warm up time: 20 sec
- Working Principle: Light Scattering
- Life of Sensor: 1-year
- Calibration: Factory calibrated. Sensors can be changed on-site using a sensor kit. Recommend annual sensor change.
- PM10
- Range: 0-1999 μg/m3
- Resolution: 1 μg/m3
- Error: Maximum of ±10% and ±10μg/m3
- Warm up time: 20 sec
- Working Principle: Light Scattering
- Life of Sensor: 1-year
- Calibration: Factory calibrated. Sensors can be changed on-site using a sensor kit. Recommend annual sensor change.
- Temperature
- Range: 0 deg C to 60 deg C
- Resolution: 0.1 deg C
- Error: 1 deg C
- Warm up time: 2 minute
- Working Principle: CMOS
- Life of Sensor: more than 10-year
- Calibration: Can be calibrated using the mobile app in configuration mode. Under Advanced Settings.
- Humidity
- Range: 0-90%
- Resolution: 1%
- Error: 3%
- Warm up time: 2 minute
- Working Principle: CMOS
- Life of Sensor: more than 10-year
- Calibration: Can be calibrated using the mobile app in configuration mode. Under Advanced Settings.
- GPS (Latitude)
- Range: -90 deg - 90 deg
- Resolution: 0.000001 deg
- Error: depends on location
- Warm up time: 3 minute
- Working Principle: Trilateration
- Life of Sensor: 1 year.
- Calibration: Self calibrated
- GPS (Longitude)
- Range: -180 deg - 180 deg
- Resolution: 0.000001 deg
- Error: depends on location
- Warm up time: 3 minute
- Working Principle: Trilateration
- Life of Sensor: 1 year.
- Calibration: Self calibrated
Power
- Power

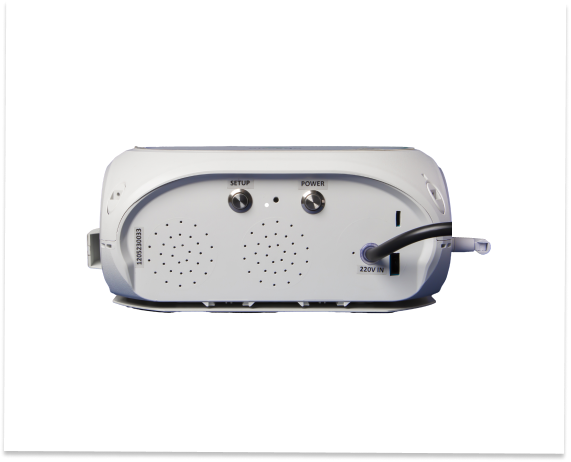

- Input: 110-240V AC, 0.3A, 50-60Hz (3m power cable provided)
- Power Consumption : 10 Watt (Peak Power)
- Battery Specs : 2900mAH/3.7V Lithium-ion rechargeable battery
- Battery Backup : 4-6 hours
General
- Display: 2 Line LCD Display (Inside the box)
- Size:
- Length: 24cm
- Breadth : 16cm
- Height : 9cm
- Weight: 1200 grams
- Material: ABS
- IP Rating: IP65
- Operating Temperature: 0-60 degC
- Operating Humidity: 0-95% RH
LED Colors
- The colors of the LED can be used to understand the current status of the device. This is helpful during configuration and setup and also to know when data is being transmitted.
- The differnet possible colors of the LED and their corresponding device status are:
- GREEN: Normal Data Mode
- RED: Set-up mode
- BLUE: Connected to Wi-Fi
- BLINKING BLUE: Data is being transmitted to server
- BLINKING GREEN: CO2 Calibration mode
APP CONFIGURABLE FEATURES
Note: After making changes via the app, the device must be turned off and on once, and connected to the internet to receive updated settings from the server.
- Measurement Frequency
- Default:
- Cloud Storage: Data is measured every 15 seconds for journey mode and 30 secs in normal mode (measurement frequency) and sent to the server every 1 minute (Sending Frequency).
- Configurable Measurement frequency
- Can be changed to 30 sec, 1min, 5min, 10min, and 20min via mobile app.
- Configurable Sending Frequency
- Can be changed to 30 sec,1min, 5min, 10min, and 20min via mobile app.
- Note:
- Longer sending frequency reduces power usage and battery backup as sending data to the server is very battery intensive.
- Longer measurement frequency ensures longer local memory as a fixed number of items are stored in the memory. Also the sensor is turned off in between intervals which may help extend sensor life.
- Alert Limits
- Alert limits can be configured for each parameter via the app.
- Get notifications on the app when alert limits are exceeded
- US & INDIAN AQI
- Select US or Indian AQI via APP. The same will be displayed on the device
Communication
- Connectivity
- Wi-Fi :
- Supports configuring up to 5 Wi-Fi networks including your home, office or personal hotspot.
- Device will automatically connect with the Wi-Fi when it becomes available.
- GSM 4G
- SIM can be accessed/replaced by opening the cover to keep it secure.
- Wi-Fi :
- Local Memory
- Local memory stores data for 2 days to 40 days based on the measurement frequency.
- Data Interval
- 15 seconds (journey mode)
- 30 Seconds to 20 min (Configurable via app).
- Data Push Protocol
- HTTP post request to host-server
SERVICE CONTRACT
- 1 Year warranty against any manufacturing defects.
- Client responsible for getting devices to our facilities for all servicing. Service time 7-10 working days.
- Warranty is void if the device is opened, tampered with or electronics damaged due to mechanical shock.
- Warranty does not include sensor change.
Connect Your Airveda Monitor To Free Mobile APP on IOS Or Android And Remotely Monitor Air Quality From Any Location
Real-Time Data
View Data Trends
Get Air Quality Alerts
View Outdoor Data
Airveda Data Plan
You may optionally purchase our Data Plan which gives you access to our state-of-the-art web Dashboard which provides a comprehensive solution for managing, analyzing and understanding air quality in your projects. Airveda Dashboard is a RESET certified Data Provider and can be used for getting RESET certification for your projects.
