Complete Indoor Air Quality
Monitoring Solution

6 Pollutants

PM 2.5

Fine particles can penetrate deep into the lungs, causing respiratory and cardiovascular issues.

PM 10

Courser particles that penetrate into your upper respiratory tract (nose & throat) causing irritation.

VOC

Volatile organic compounds released from paints, furniture etc. can cause headaches, dizziness, and long-term exposure may lead to serious health issues.

CO2

Elevated CO2 (above 1000 ppm) can indicate poor ventilation and cause drowsiness, headaches, and reduced productivity.

Temperature

Maintaining optimal conditions ensures comfort and well-being. Helps optimize HVAC systems, balancing comfort and energy consumption.

Humidity

High humidity promotes mold, while low humidity leads to dry air, increasing respiratory discomfort.

One Year Warranty
and lifetime supporty

Highly
Precise & Accurate

Uses High Quality Premium Sensors


Uses high-quality laser sensors. Benchmarked against Beta Attenuation Monitor (BAM) – the gold standard in ambient air quality measurement


Temperature & humidity sensors calibrated by a NABL-traceable master source


Built using commercial grade NDIR based CO2 sensor and CMOS based VOC sensor.

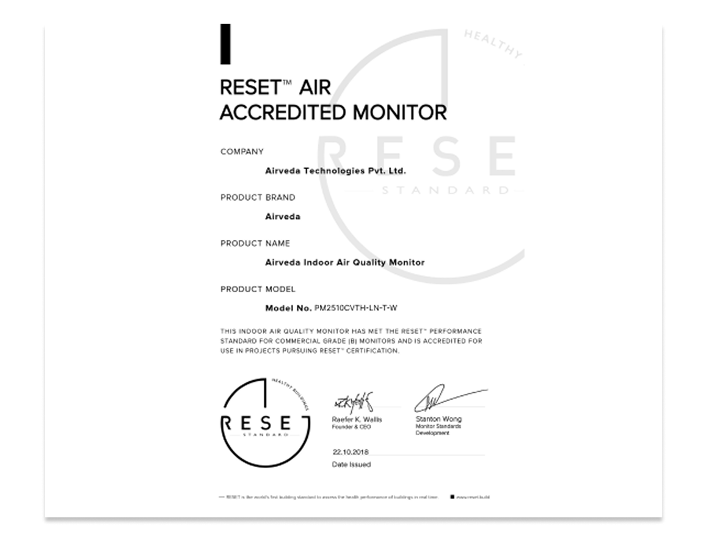

Grade B RESET Certified Commercial Monitor

Meets rigorous global air quality certification standards and can be used for RESET or Well Building Green Building certifications.

Trusted by Leading Institutions

Used by IIT Delhi, IIT Kanpur, and other reputed organizations for air quality research and monitoring

Supports Remote Calibration

Advanced remote calibration technology keeps your device accurate over time

Intuitive Beautiful
Touch Display

The Future of
Air Monitoring
is Here

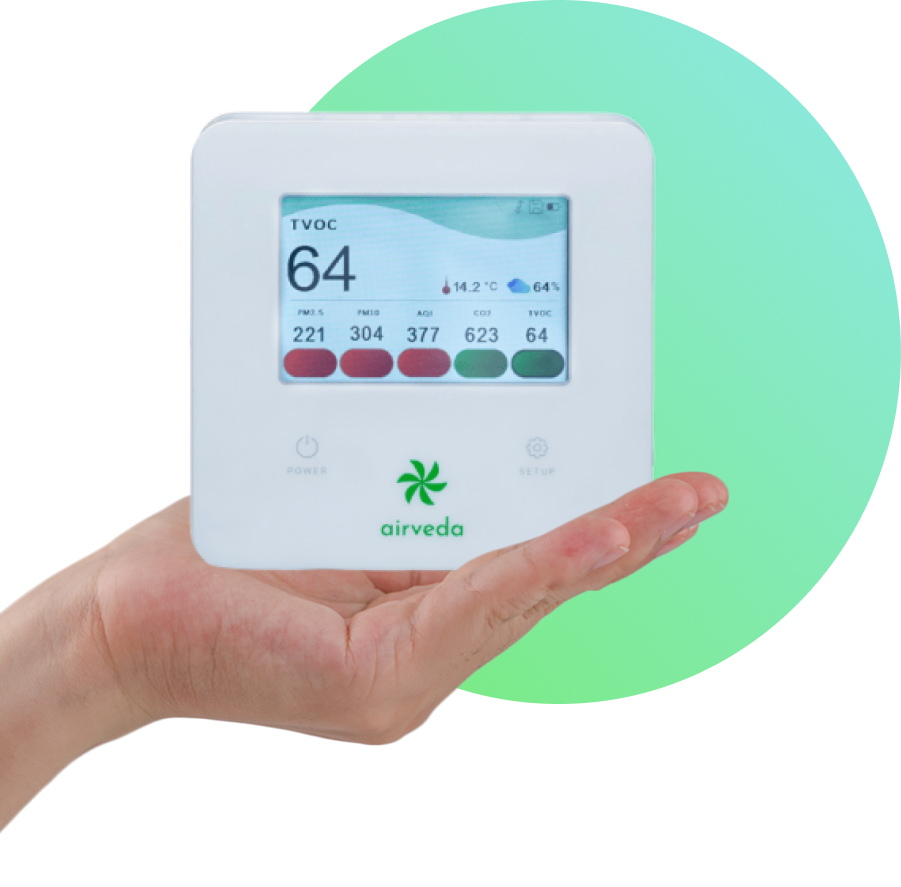

Touch Display

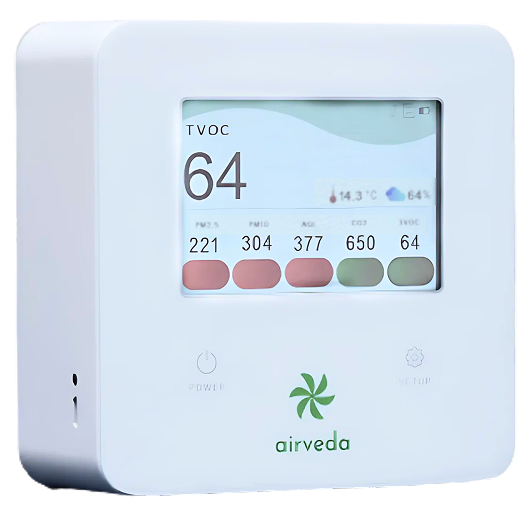

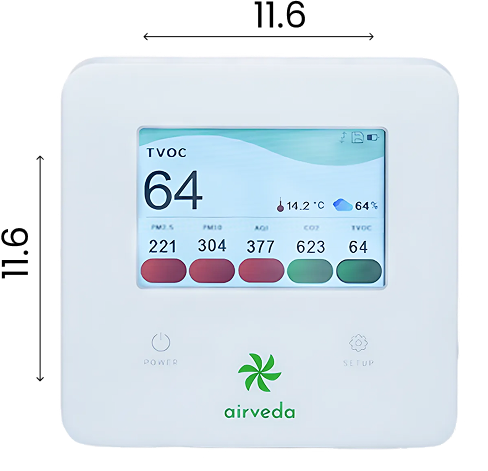

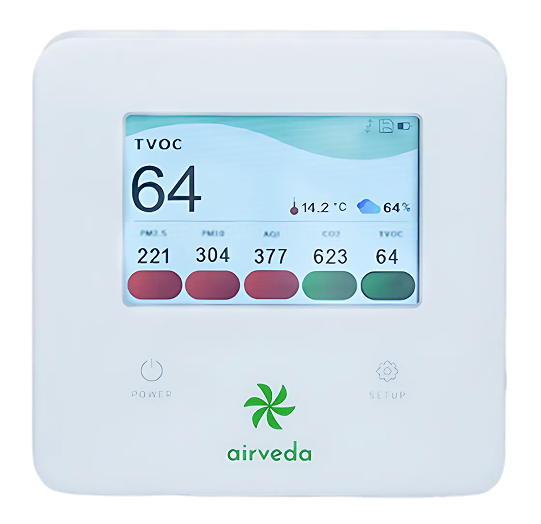

Experience clear visibility with the 3.5” touch display. Easily select parameters for bold, big font display, ensuring visibility even from a distance.

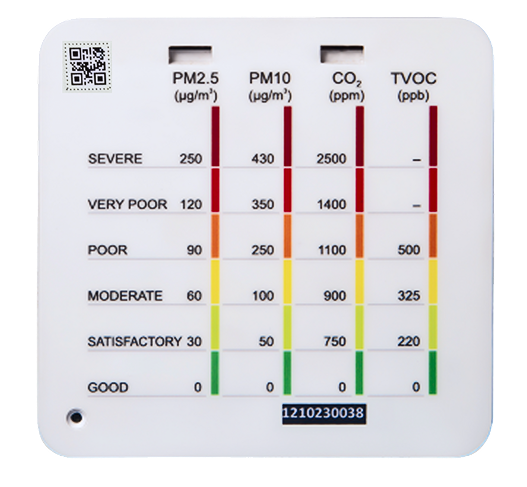

Traffic Light Coloring

Alerts at a glance color-coded indicators (green, yellow, red) to notify you of any parameter exceeding set limits, configurable via the app for personalized monitoring.

Parameter Visibility

Instantly monitor PM2.5, PM10, AQI, CO2, TVOCs, temperature, and humidity. Each parameter is color-coded with specific light colors for quick alerts on exceeding limits.

Adjustable Display Brightness

Optimize visibility with adjustable brightness settings. Automatically turn off the display at night to minimize disturbance.

IOT Enabled

Seamlessly integrate with IoT ecosystems for automated air quality
monitoring. Get smart alerts and insights for a healthier environment.

Local Memory

Data is stored locally for up to two days when Wi-Fi is unavailable. Once connected, it automatically syncs data to the server for seamless tracking.

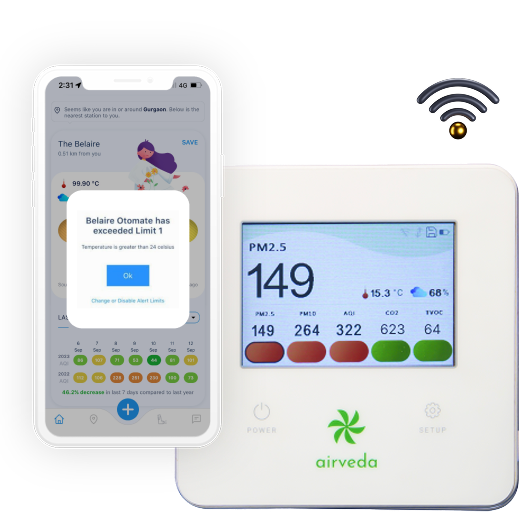

Wi-Fi & App enabled

Connect via home, office, or personal hotspot Wi-Fi and monitor air quality remotely.
Customizations: Request for GSM/Ethernet in addition to Wi-Fi

Configurable Measurement & Sending Frequency

Reduce bandwidth and battery usage by reducing sending frequency or increase date range of local memory storage by reducing measurement frequency.

Wi-Fi
Wi-Fi + GSM

Compatible with Building Management Systems.

Support for Modbus RS485/Modbus IP/BACnet on request.

Customizations

Request for GSM/Ethernet in addition to Wi-Fi

Versatile & Adaptable

Supports BMS integration for automation customize
with Modbus or Modbus IP, BACNet

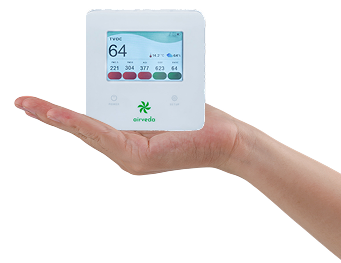

Portable (Battery Back up )

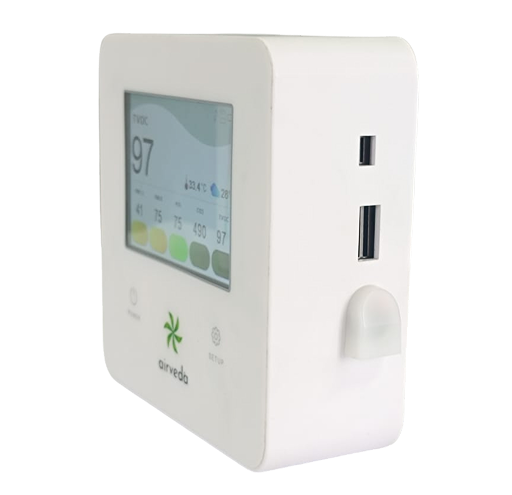

The small size and long battery life of 8-10 hours makes Airveda monitors extremely portable. Can be charged using any USB power outlet in your car, laptop or power bank. The monitor measures your air quality every second so you can understand the air quality where you are, in real-time.

Wall mounted

Device can be wall mounted, with the wall mounting accessory provided with the device.

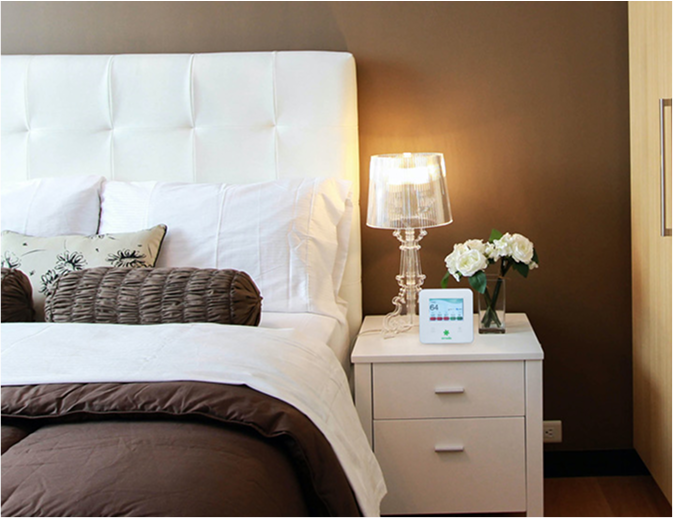

Desktop

Device can be placed on desk for easy viewing of data or access.

Proudly Made & Serviced in India

Airveda monitors are completely manufactured and serviced in India. Sensors are also calibrated locally to suit Indian conditions. Our manufacturing facility has been running for 30 years and is a trusted name in the local industry.

Airveda Data Platform

Stay informed in real-time and get a birds view of the air quality of all your projects.

You may optionally purchase our Dashboard Plan which gives you access to our state-of-the-art web Dashboard which provides a comprehensive solution for managing, analyzing and understanding air quality in your projects.

Advanced data analysis

Easily plot, analyze, and compare air quality data. Track trends across various spaces and time periods to manage diverse projects efficiently.

Download Your Data

Export and download data in .csv format for detailed analysis. Create custom graphs and visualizations to derive powerful insights.

Access data via  JSON API

Access data via  JSON AP integrate effortlessly across digital devices using our JSON API. Enhance decision-making with dynamic TV displays offering customizable templates.

Airveda TV Displays

Inspire and inform your space with Airveda TV Displays, a key asset. Offering
rotating templates and stunning visuals, every TV becomes a canvas of inspiration.

Total Control with Real-Time Alerts

Breathe freely with alerts across all monitors. Get instantly notified when AQI thresholds are crossed enabling you to take quick action when air quality deteriorates, ensuring well-being for your occupants. You can subscribe to these alerts on your phone, on your dashboard as well as in email to ensure you never miss an alert.

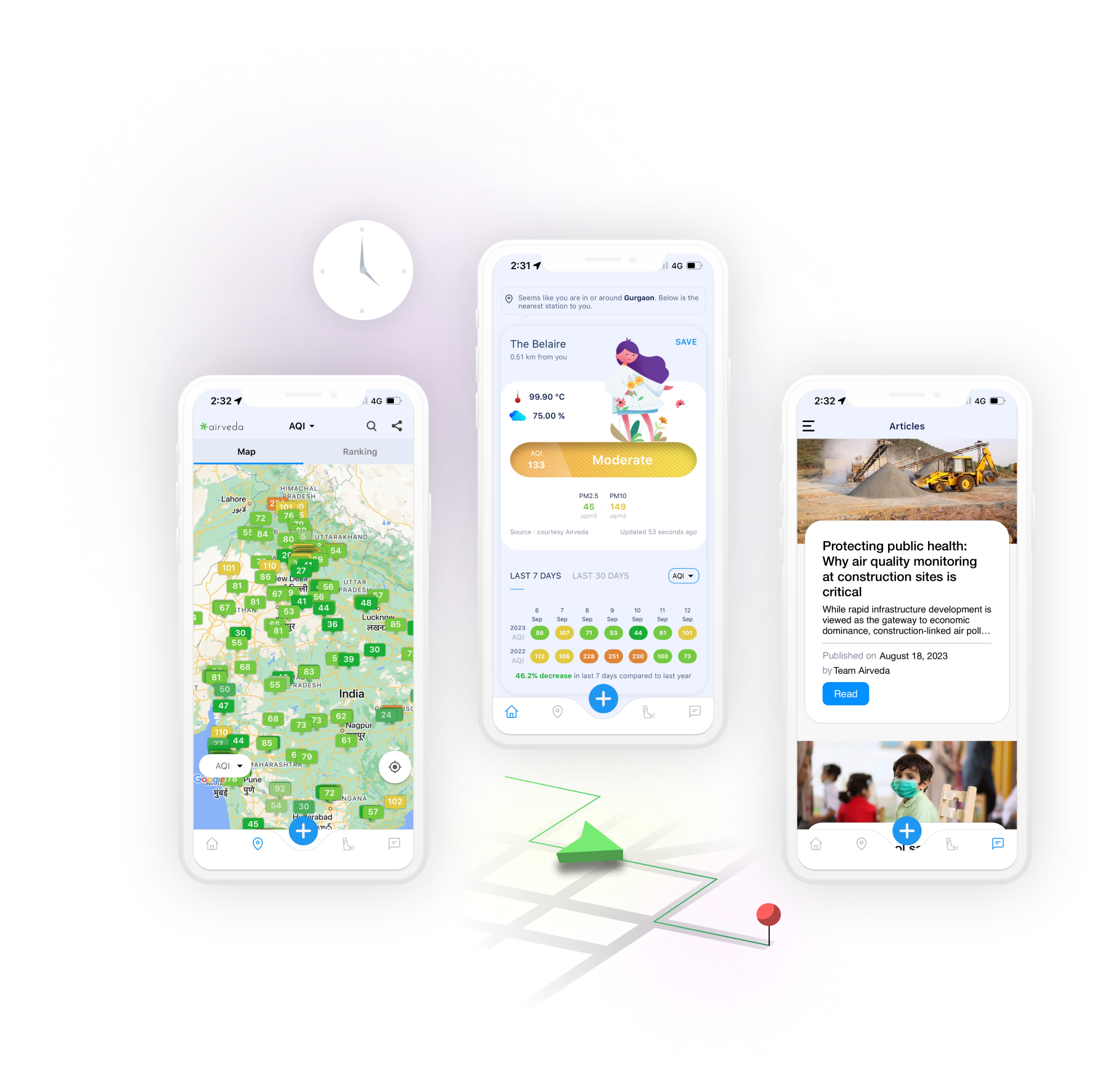

Airveda Mobile App

Connect Your Airveda Monitor To Free Mobile APP on IOS Or
Android And Remotely Monitor Air Quality From Any Location

Real-Time Data

Get PM and AQI measurements every second. Choose between US AQI & Indian AQI. View real-time readings from your monitor on the app irrespective of monitor location.

View Data Trends

Understand how air quality varies with hourly, daily & monthly historical data. Measure performance changes in your air purifier, know when it is time to replace filters. Plan vacations, exercise time, kids’ playtime & other outdoor activities to limit your exposure to pollution.

Get Air Quality Alerts

Customize two PM levels for your monitor via the app. Get real-time alerts when these levels are reached, so you take appropriate action such as use masks, turn on purifiers or your kitchen chimney.

View Outdoor Data

Know the air quality wherever you go, as well as recommendations on when it is safe to spend a fun day outdoors without worrying about air quality, or when it is poor, and it's better to stay indoors.

Technical Specifications

PM

  • PM2.5 Range: 0-999 μg/m³
  • PM10 Range: 0-1999 μg/m³
  • Min. resolution < 0.3 μm
  • Relative error: Max. of ±10% and ±10 μg/m³
  • Response time: Less than 10 seconds when scene changes

CO2

  • Range: 0 to 5000 ppm
  • Accuracy: ±50 ppm or ±3%
  • Response time: 2 minutes
  • Self-calibrating: Can be manually calibrated by taking the device outdoors and long pressing the Setup Button.

Measurement

Measurement parameters:PM2.5, PM10, CO2, TVOC Temperature & Humidity

Temperature

  • Temperature
  • Range: 10 to 60°C
  • Accuracy: 1°C
  • Resolution: 1°C

Humidity

  • Range: 0 to 90% RH
  • Accuracy: 3%
  • Resolution: 1%

TVOC

  • Range: 125 to 600 PPB
  • Accuracy: 15%
  • Resolution: 1ppb
  • Initialization time: 15 minutes. Self-calibrating.

Portable

  • Size: 11.6 cm x 11.6 cm x 6 cm
  • Power Voltage: 5V
  • Can be charged via laptop/car USB
  • Weight: 370 g
  • 2*2900 mAh re-chargeable battery
  • 8-10 hours of battery backup

Display

  • 3.5” Touch display
  • Desired parameter to be displayed as bold can be pressed to select.
  • Limits for red, yellow, green color can be configurable via app.

Wi-Fi

  • Connects to Wi-Fi. Data available in Android and iOS apps along with Indian AQI, day, week, month history, as well as outdoor data in different parts of the city.

Calibration

  • PM: Beta Attenuation Monitor (BAM)
  • CO2: Can be self-calibrated to 400 ppm outdoors by taking the monitor outdoors and long pressing the Setup button on the monitor.
  • Temperature & Humidity calibrated with a master traceable to NABL.

Working Principle

  • PM sensor uses laser scattering principle: Light scattering can be induced when particles go through the detecting area. The scattered light is transformed into electrical signals, which are then amplified and processed. The number and diameter of particles can be obtained by analysis because the signal waveform has certain relations with the particles' diameter.
  • CO2 sensor is dual wavelength NDIR based (Nondispersive infrared sensor).
  • TVOC is MOS MEMS based sensor.
  • Temperature sensor is CMOS, Humidity is Capacitive.

Warranty

  • 1 Year warranty against any manufacturing defects.
  • Client responsible for getting the device to our facilities for all servicing. Service time: 1 week.
  • Warranty is void if the device is opened, tampered with, or electronics damaged due to mechanical shock.
  • Sensor change and calibration are not included in the warranty.
